32 33 000 Removing and Installing/Replacing Steering Wheel

32 33 000 Removing and installing / replacing steering wheel





Note:
Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.





Necessary preliminary tasks:
^ Remove airbag unit





Move wheels/steering wheel into straight ahead position.

Release screw and remove steering wheel.

Installation:

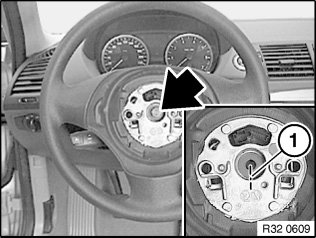

Align steering wheel using markings (1) to steering column and attach.

Make sure connecting lead(s) is/are correctly laid.

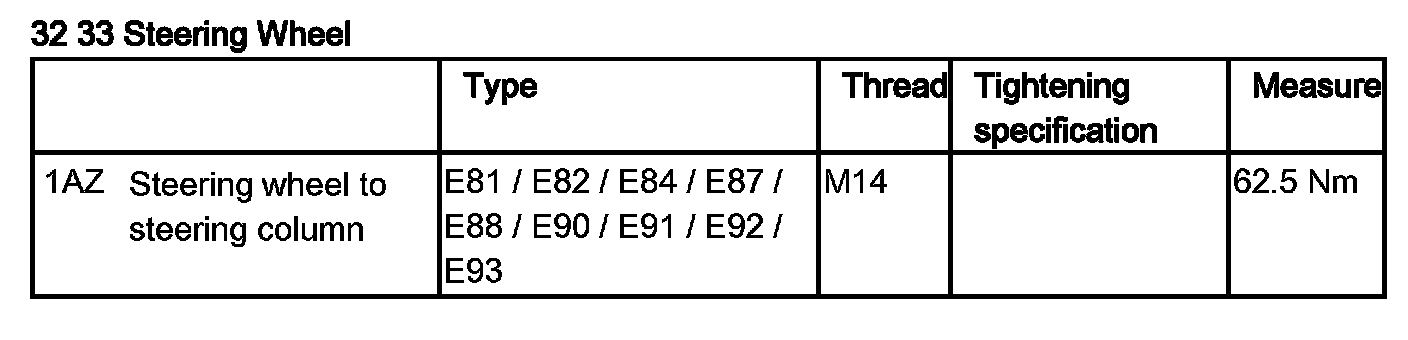

Tightening torque 32 33 1AZ.
