Replacing Switch Combination for Seat Adjustment

61 31 204 - Replacing switch combination for seat adjustment





Necessary preliminary tasks:
- Remove outer cover Removing and Installing/Replacing Outer Cover on Front Left or Right Seat (Normal/Electric) on front seat

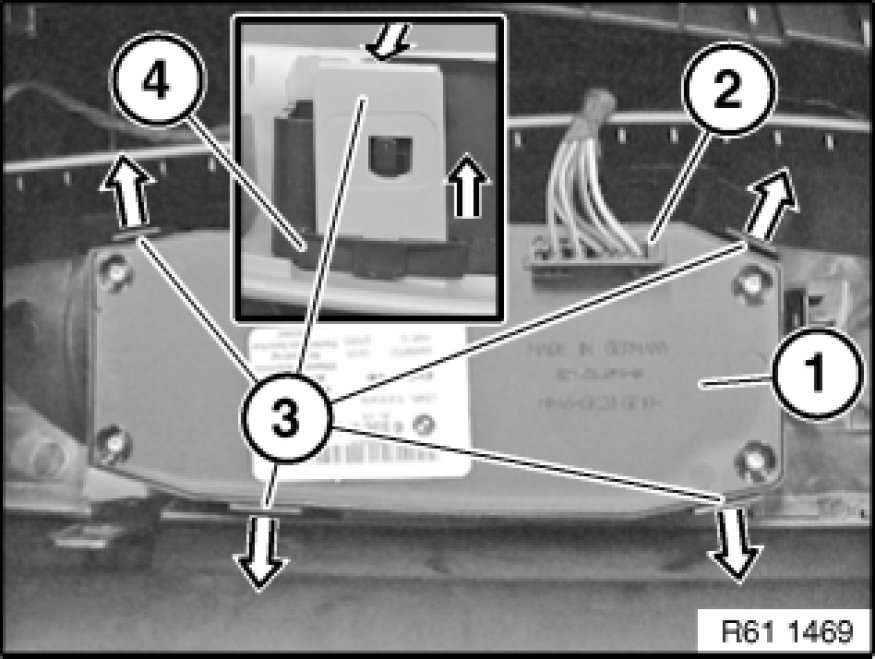

Disconnect plug connection (2).
Unlock retaining tabs (3) in direction of arrow and remove switch combination (1) from cover.

Installation:
Retaining tabs (3) of cover and guide (4) of switch combination (1) must not be damaged.
Make sure switch combination (1) is correctly seated in retaining tabs (3).
