Seat Belt: Service and Repair

72 11 033 Removing And Installing Or Replacing Front Seat Belt







Necessary preliminary work:
- Remove panel for door post

NOTE: If a seat belt which is damaged due to an accident is exchanged, check the slide bar for damage (bending) and replace if necessary.

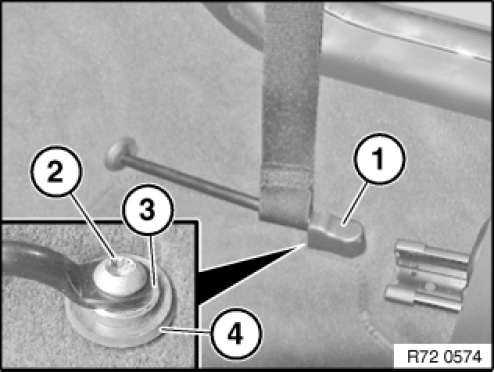

Lever out protective cap (1).
Release screw (2).

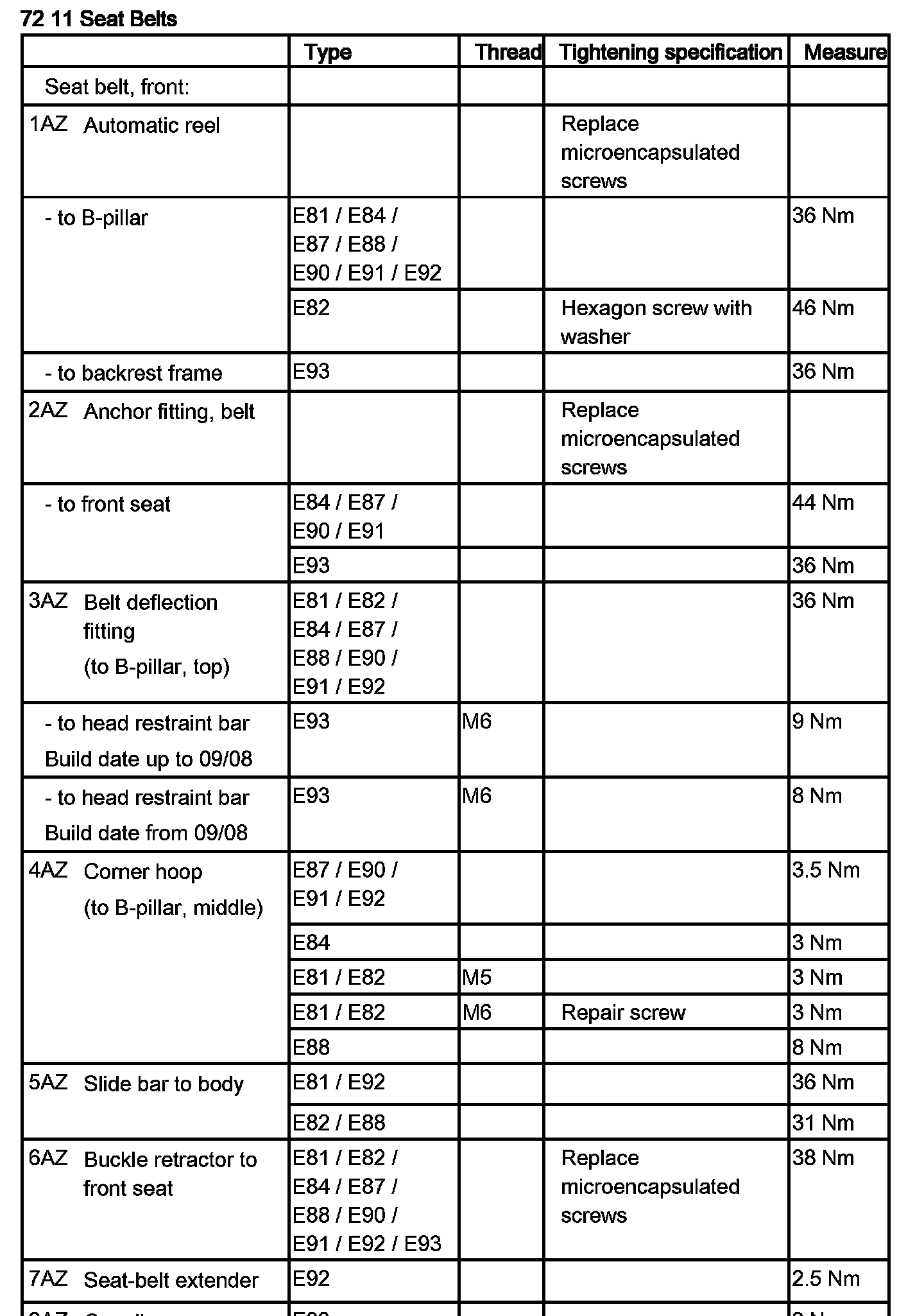

Tightening torque 72 11 05AZ.
Extract seat belt strap.

Installation note:
Check that spacer bushing (3) and rubber ring (4) are in correct position.
Webbing must not be twisted when in the installed condition.

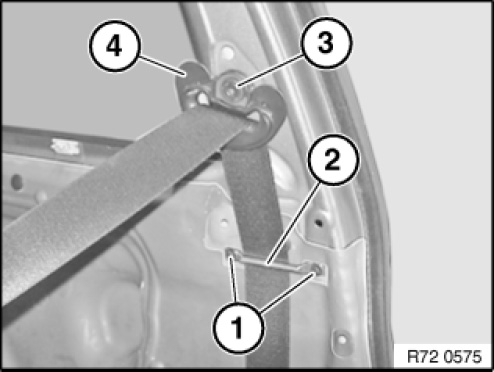

Release screws (1).
Tightening torque 72 11 04AZ.

Installation note:

E81 only:
If screws (1) slip, use 6 mm dia. repair screws.
Tightening torque 72 11 04AZ.

Remove deflection bracket (2).
Release screw (3).
Tightening torque 72 11 03AZ.
Remove belt deflection fitting (4).

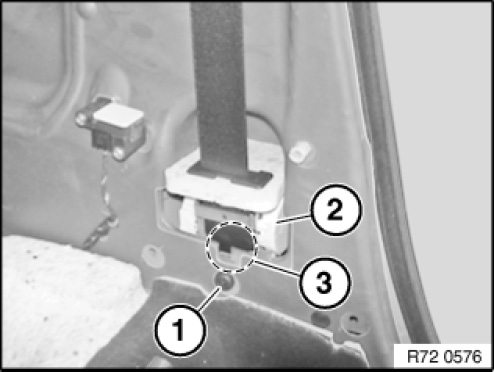

Release screw (1).
Tightening torque 72 11 01AZ.
Remove automatic reel (2).

Installation note:
Coding (3) of automatic reel must be seated in body opening.







Installation note:

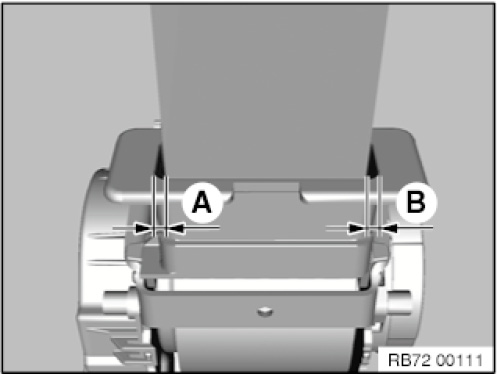

Open spaces (A) and (B) from seat belt strap to guide funnel must have the same dimensions.

�(:

�:
