Tire Pressure Module: Service and Repair

36 11 105 Removing and installing (replacing) RDC control unit





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).





Necessary preliminary tasks:
^ Remove right luggage compartment trim panel

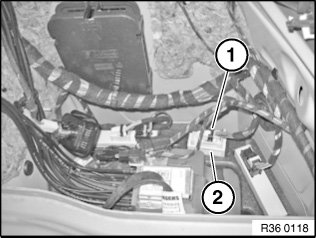

Disconnect plug connection (1).

Pull out control unit (2) towards top.





Replacement:
- Carry out programming/encoding
