Accelerator Pedal: Service and Repair

35 40 001 Removing and installing or replacing accelerator pedal module

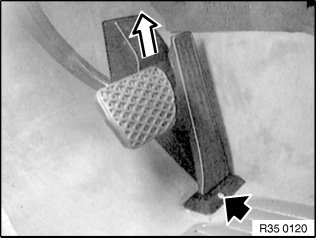

Take off cap.
Release screw.
Pull accelerator pedal module upwards out of fixture.

Installation:

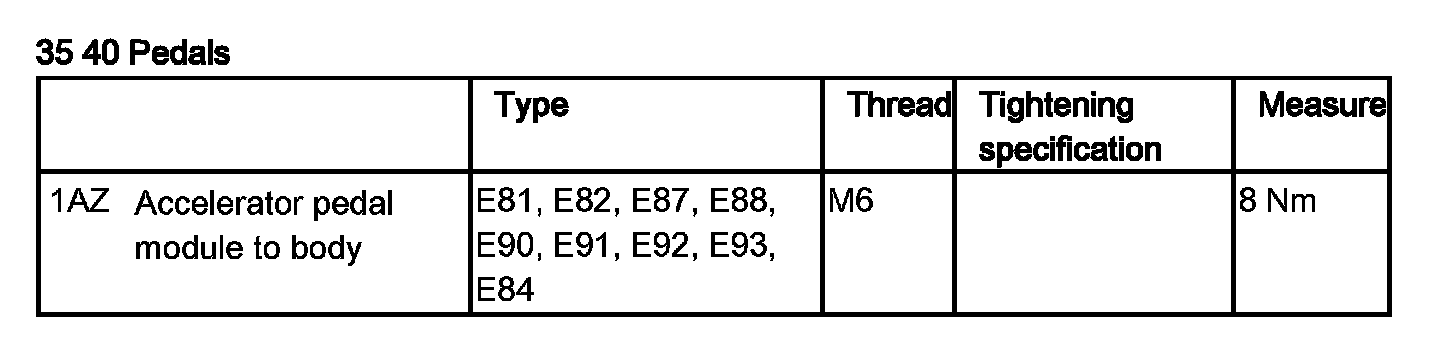

Tightening torque 35 40 1AZ.

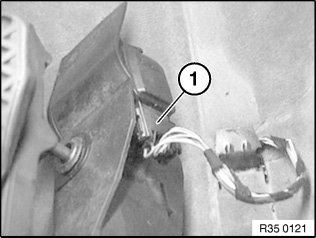

Pull off plug (1).
Remove accelerator pedal module.







IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
