64 31 081 Removing and Installing/Replacing Microfilter Housing (Upper Section)

64 31 081 - Removing and installing/replacing microfilter housing (upper section)

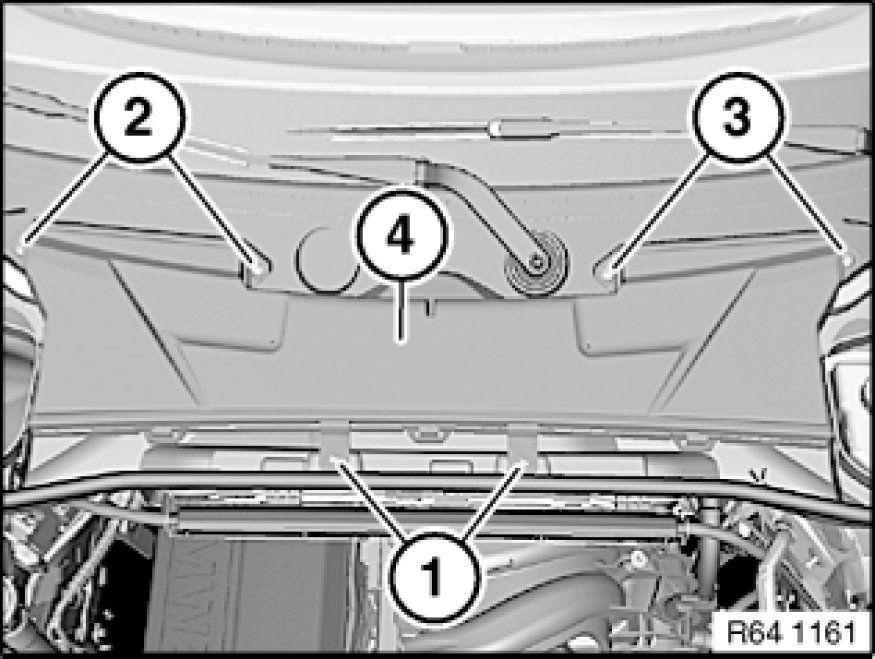

Note: Example shown on E87:





Release screws (1).
Unfasten screws (2 and 3).
Remove upper section of microfilter housing (4).

Installation:
Make sure upper section of microfilter housing (4) is correctly seated.





Replacement:
Release catches (1).
Release microfilter (2) in direction of arrow from upper section of housing (3).

Installation:
Make sure microfilter (2) is correctly seated.
