1 Series M Coupe (E82) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lights

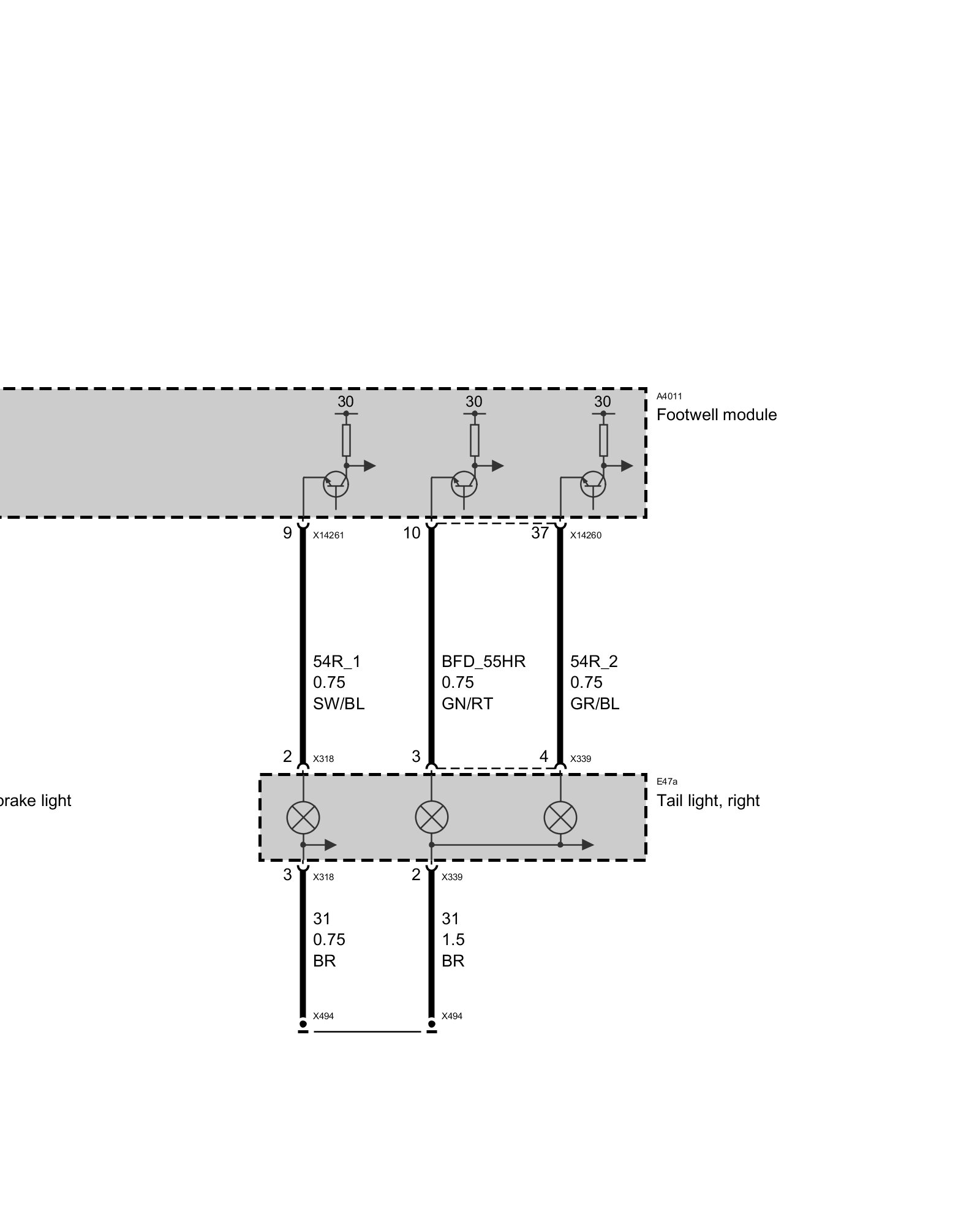

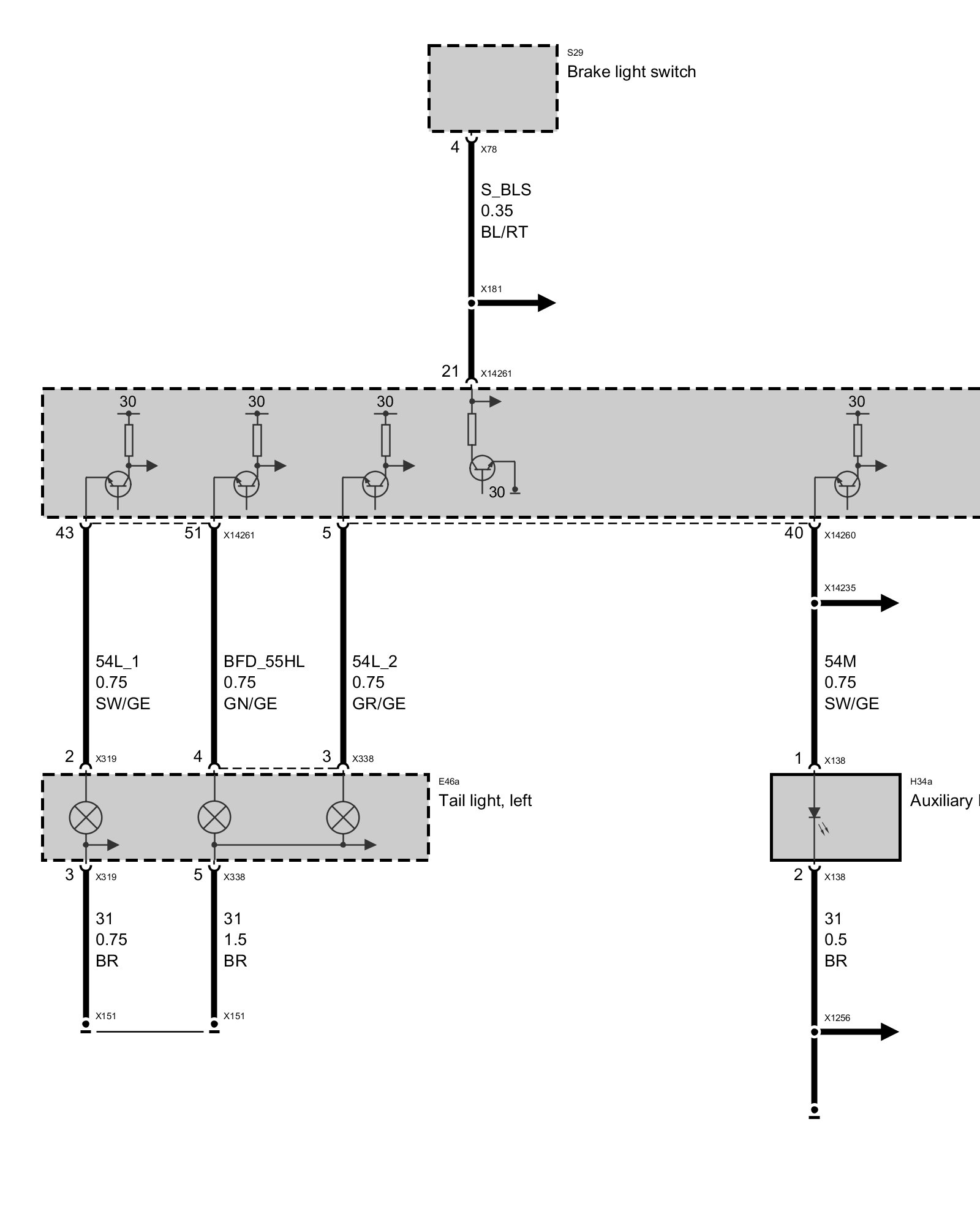

Brake Lights
Brake Lights
Up to 03/09
As of 03/09
