System Diagram
>>

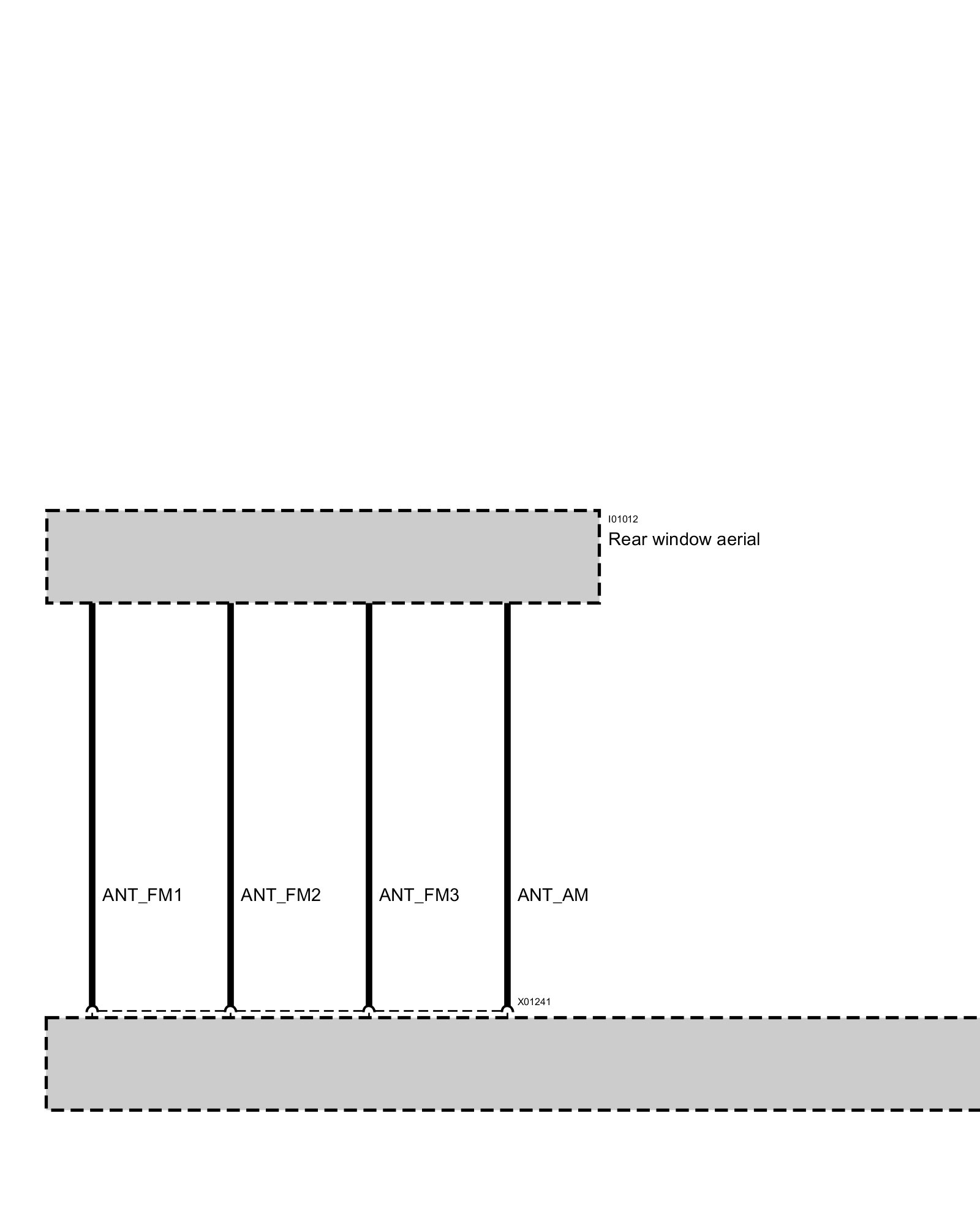

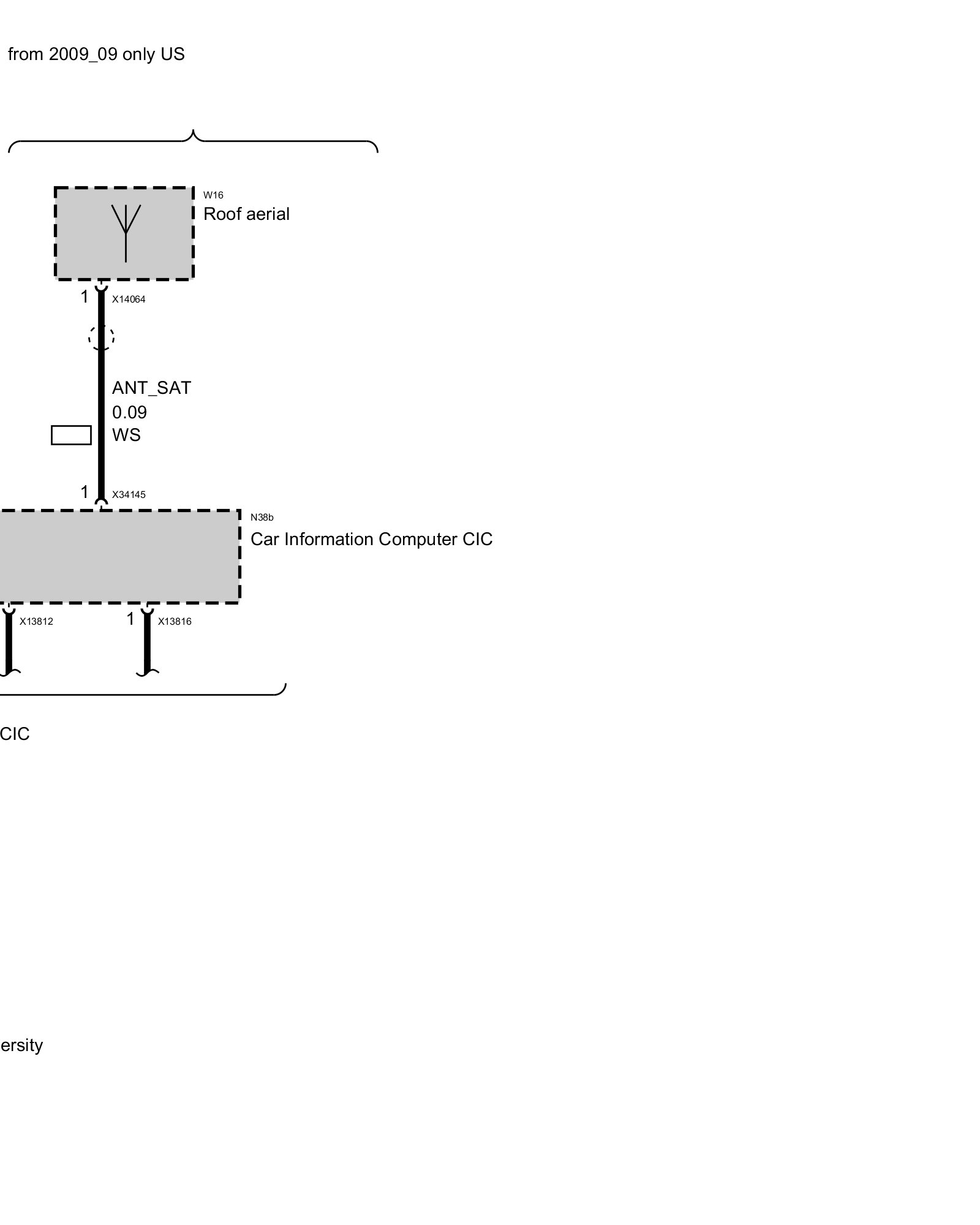

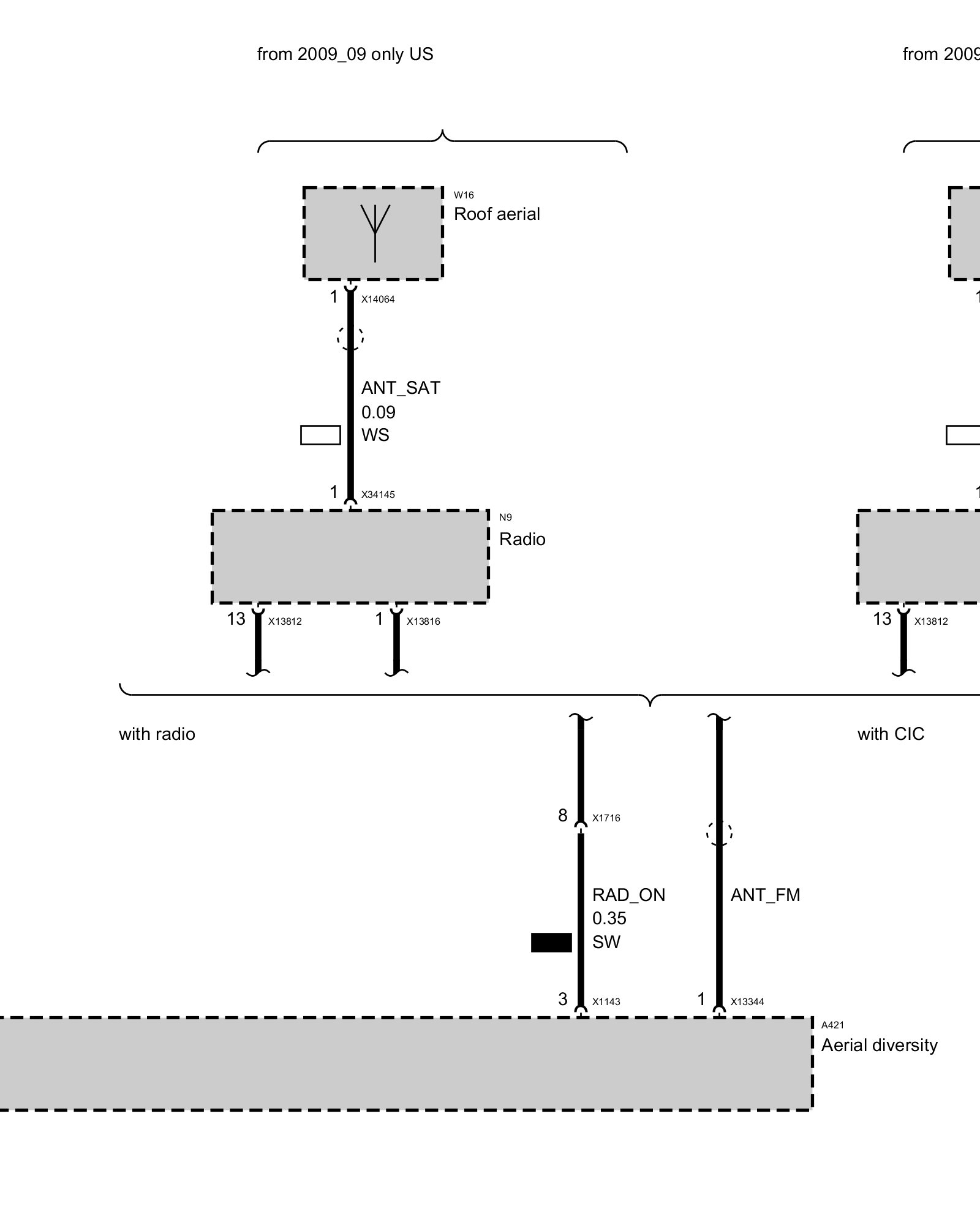

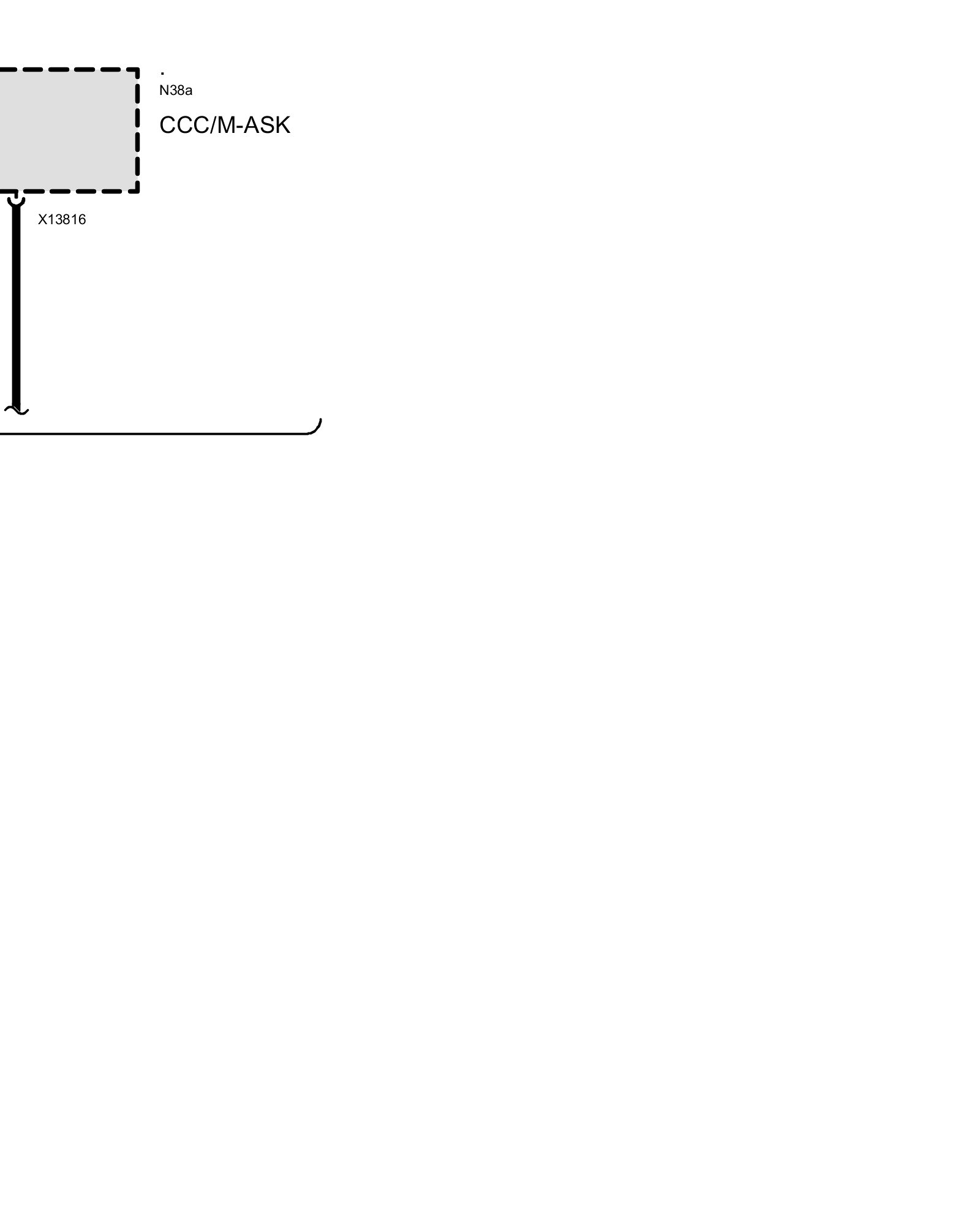

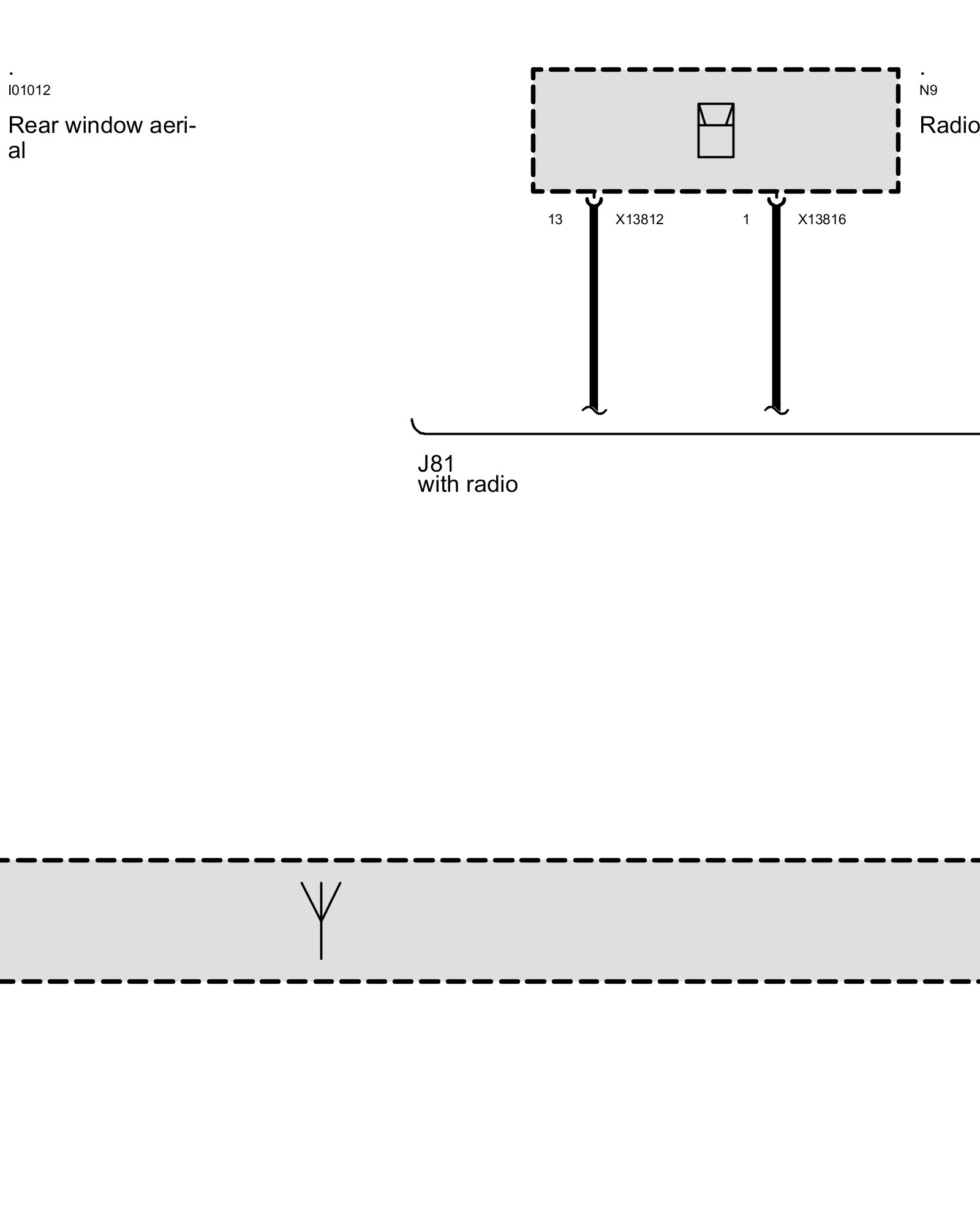

Radio Reception

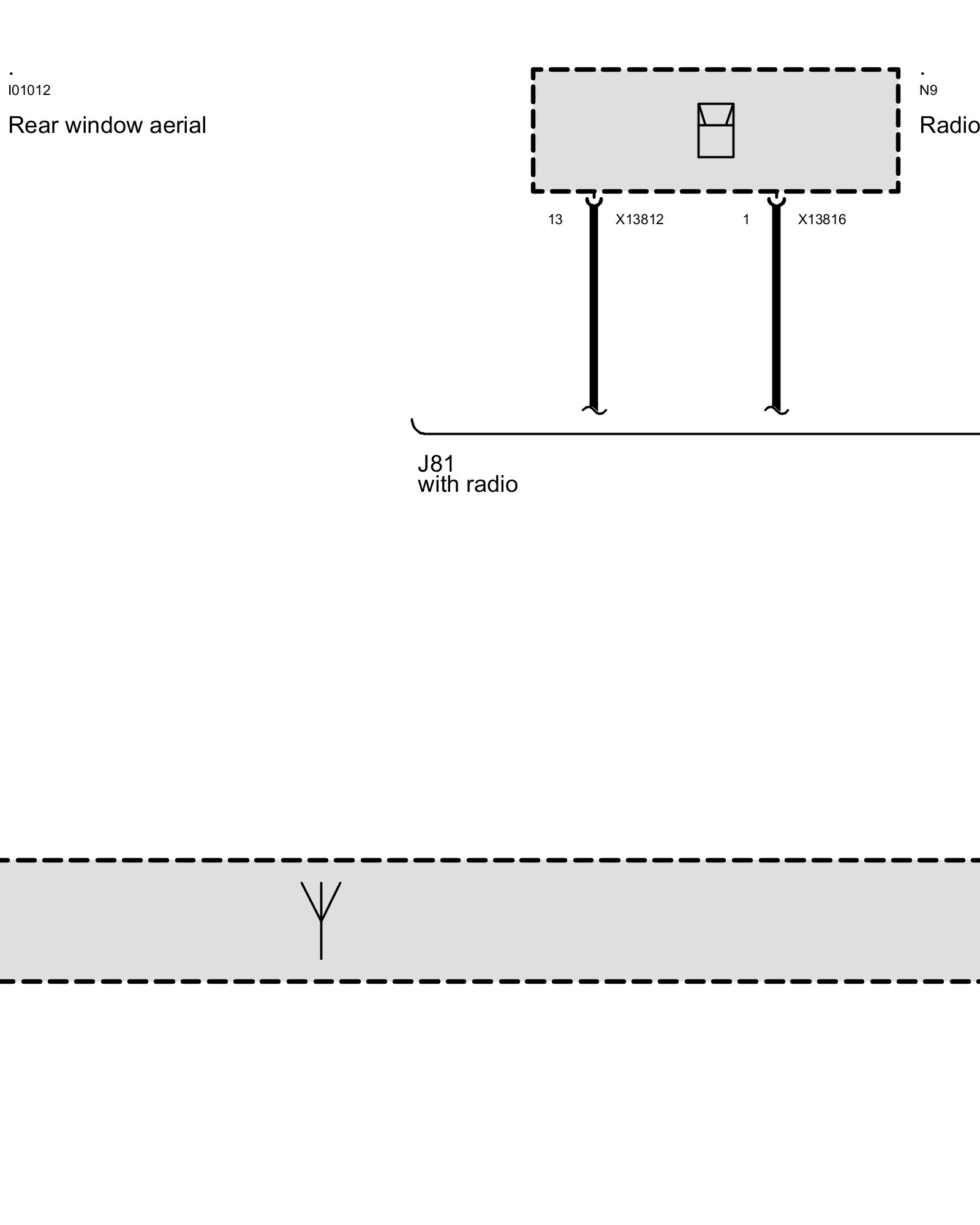

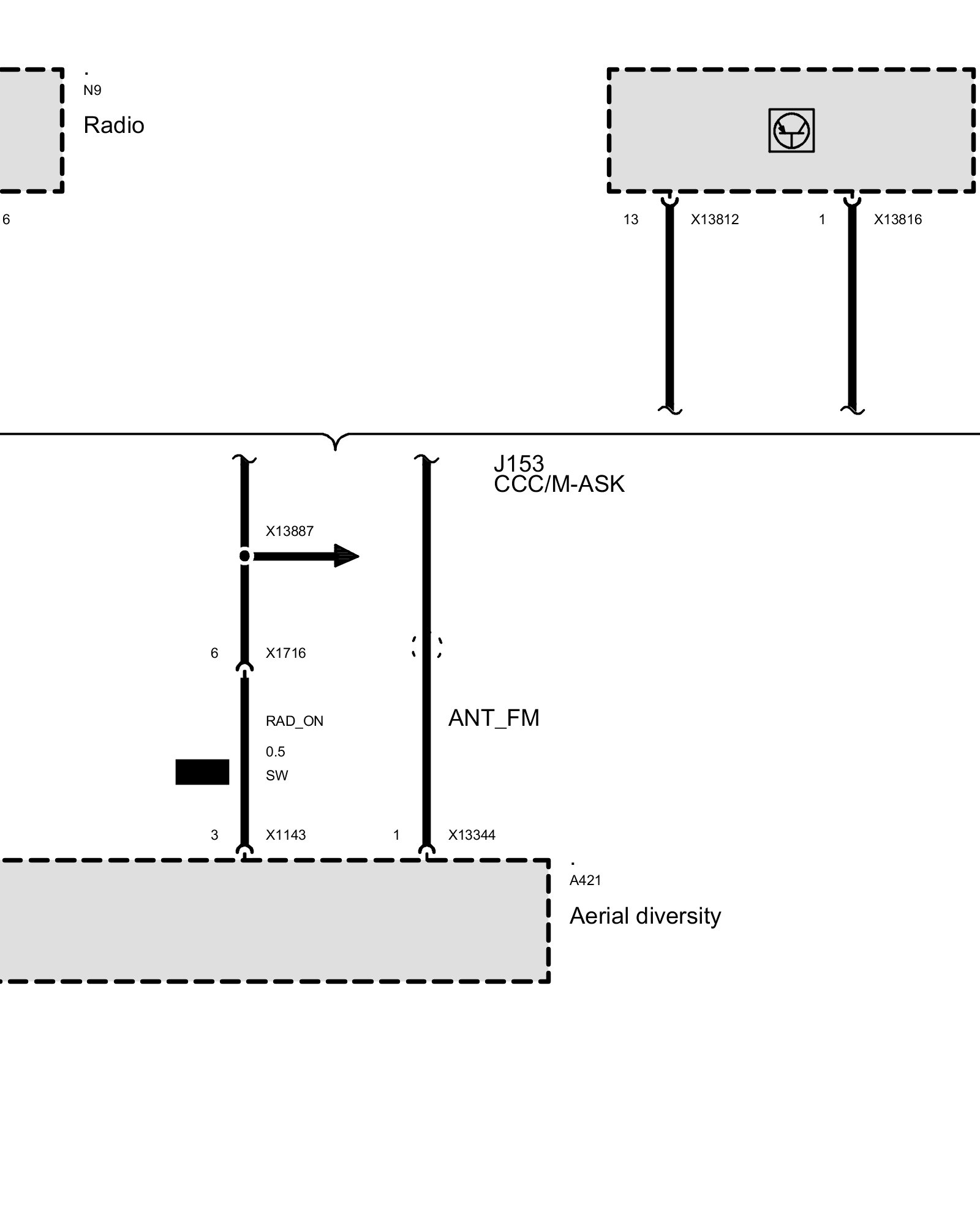

Radio Reception

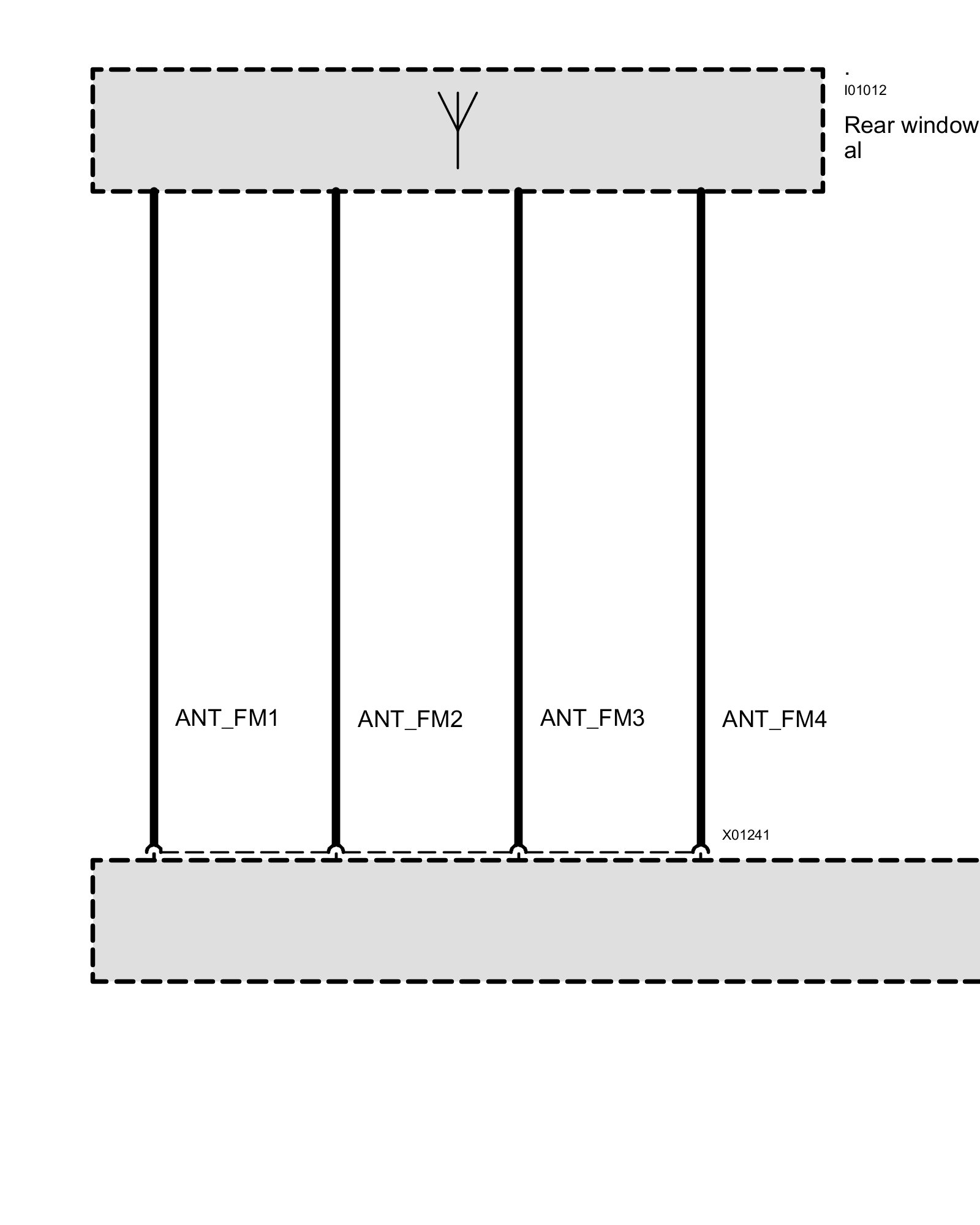

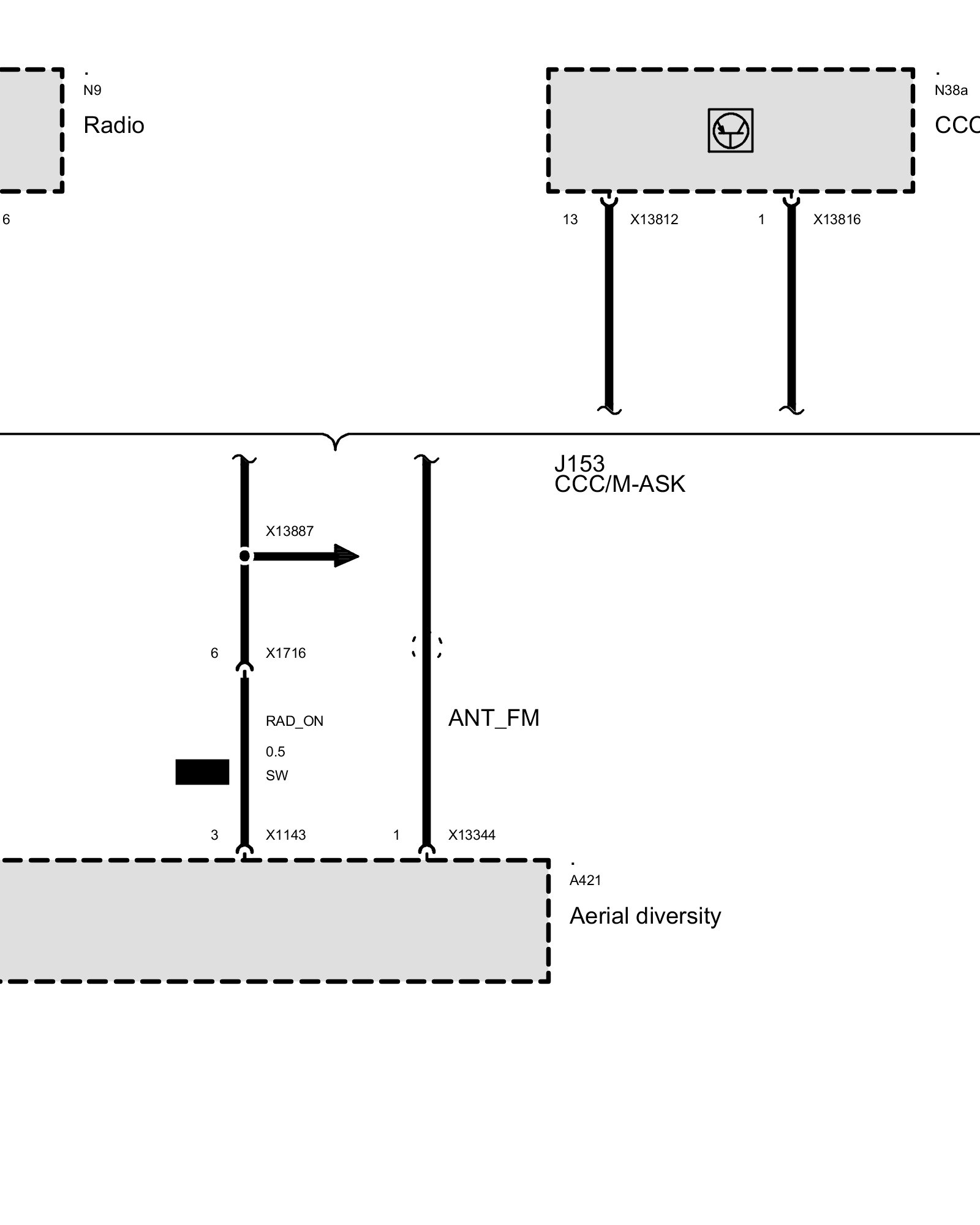

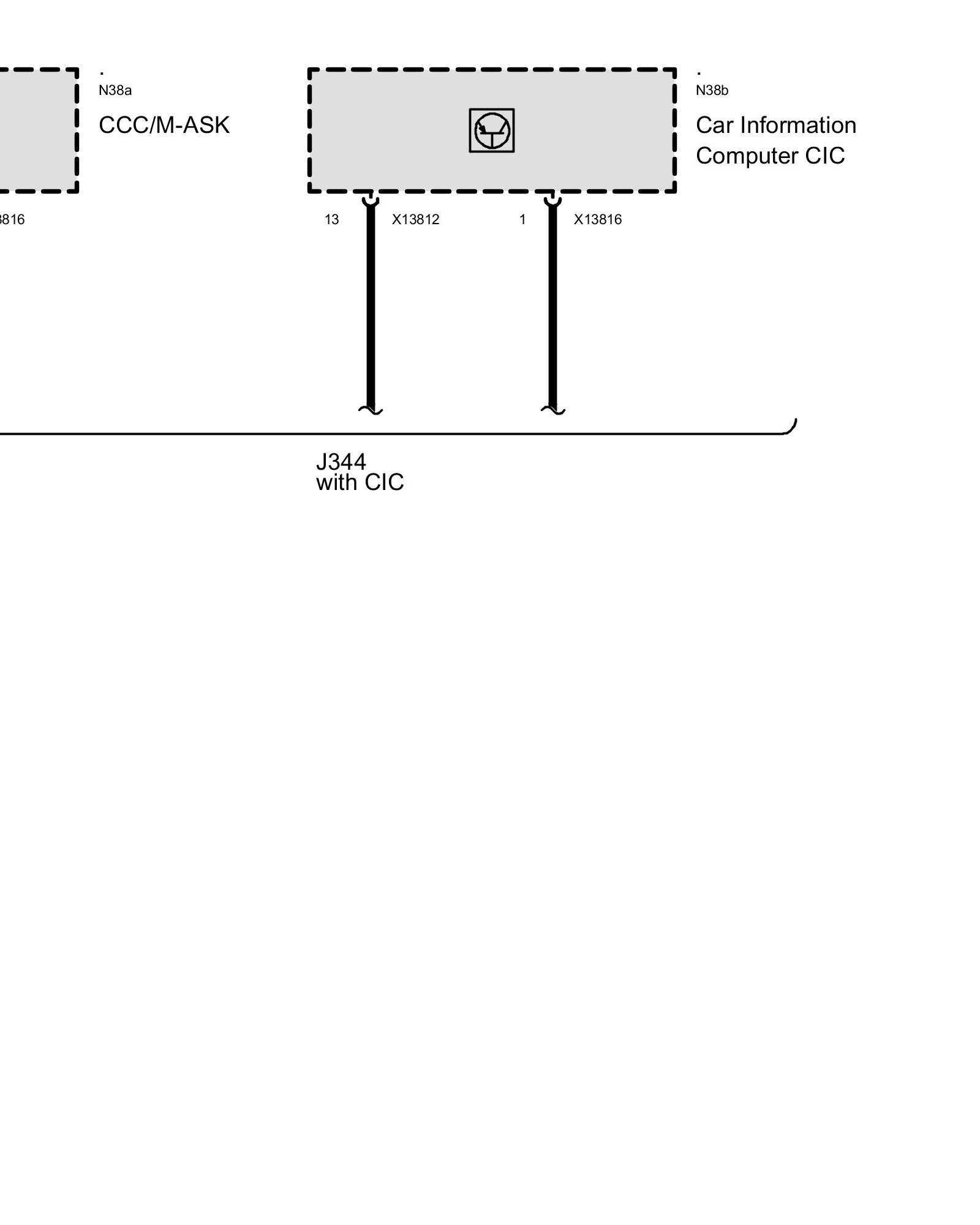

Radio Reception
Up to 09/08
As of 09/08 Up to 09/09
As of 09/09
