FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
1 Series M Coupe (E82) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X6
>>

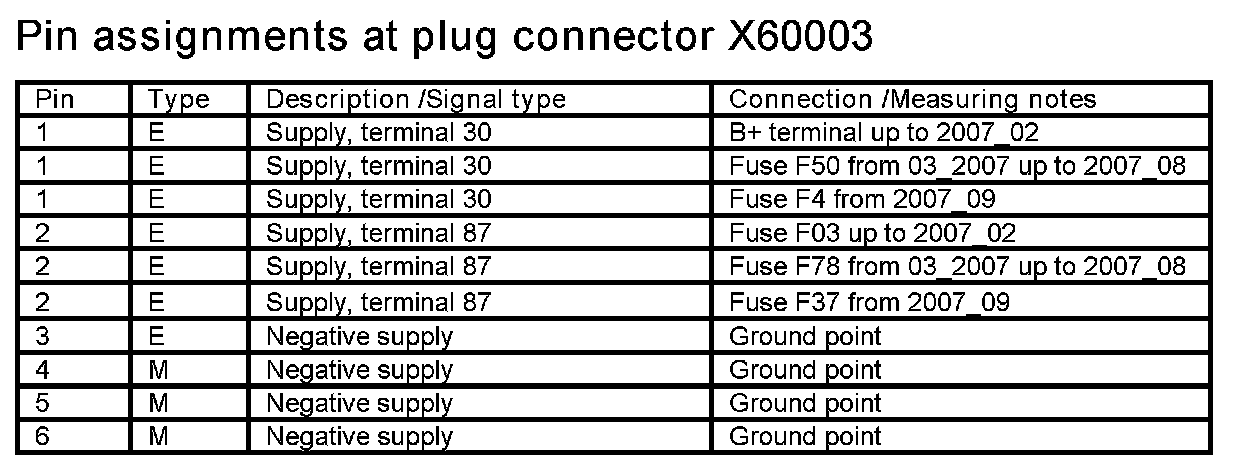

X60003
>>
A6000 DME Control Unit With EAC Sensor N51 Engine
A6000 DME Control Unit With EAC Sensor N51 Engine
X60003
A6000 DME Control Unit
