1 Series M Coupe (E82) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

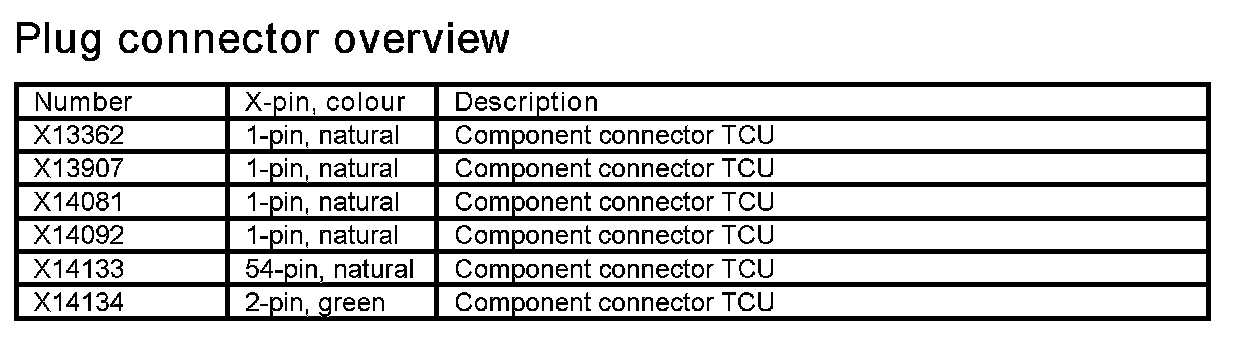

Connectors From X1
>>

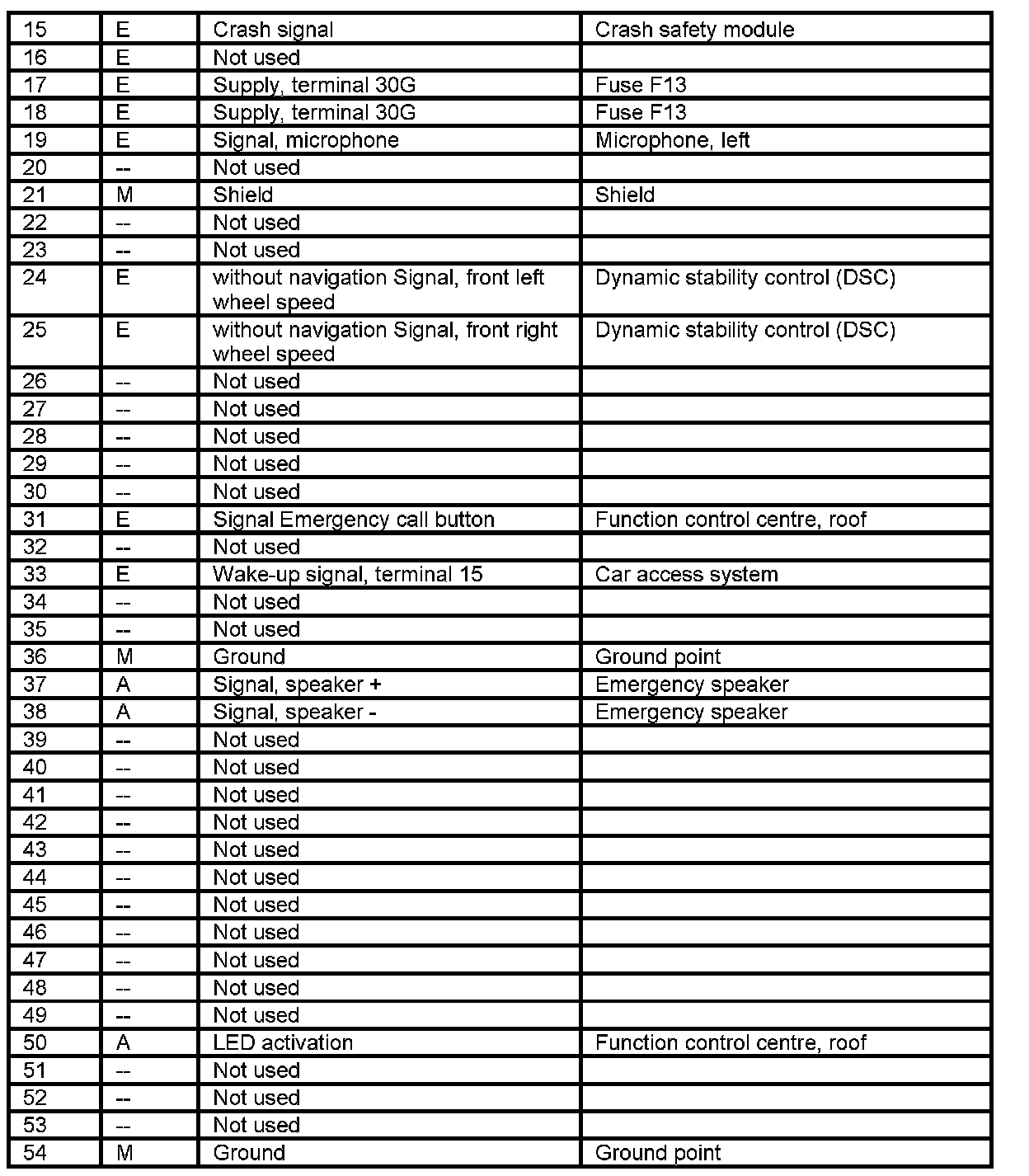

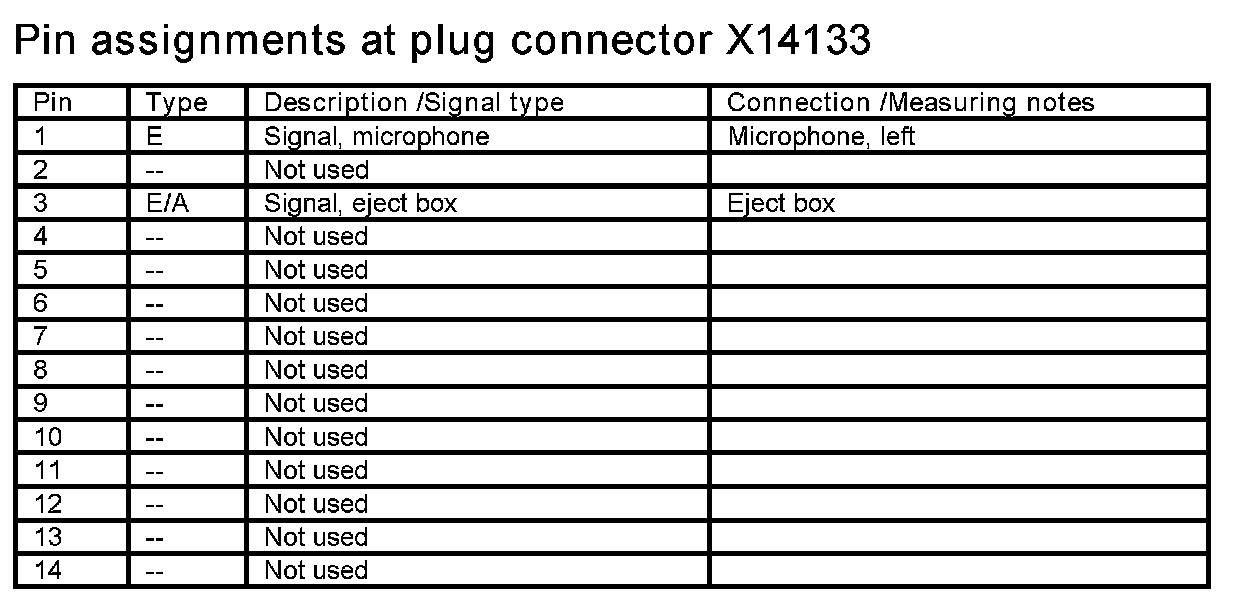

X14133
>>
U400b TCU
U400b TCU
X14133
U400b TCU
