Home >> BMW >> 2011 >> 1 Series M Coupe (E82) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13814 >> N38a CCC/M-ASK (HiFi System)

N38a CCC/M-ASK (HiFi System)

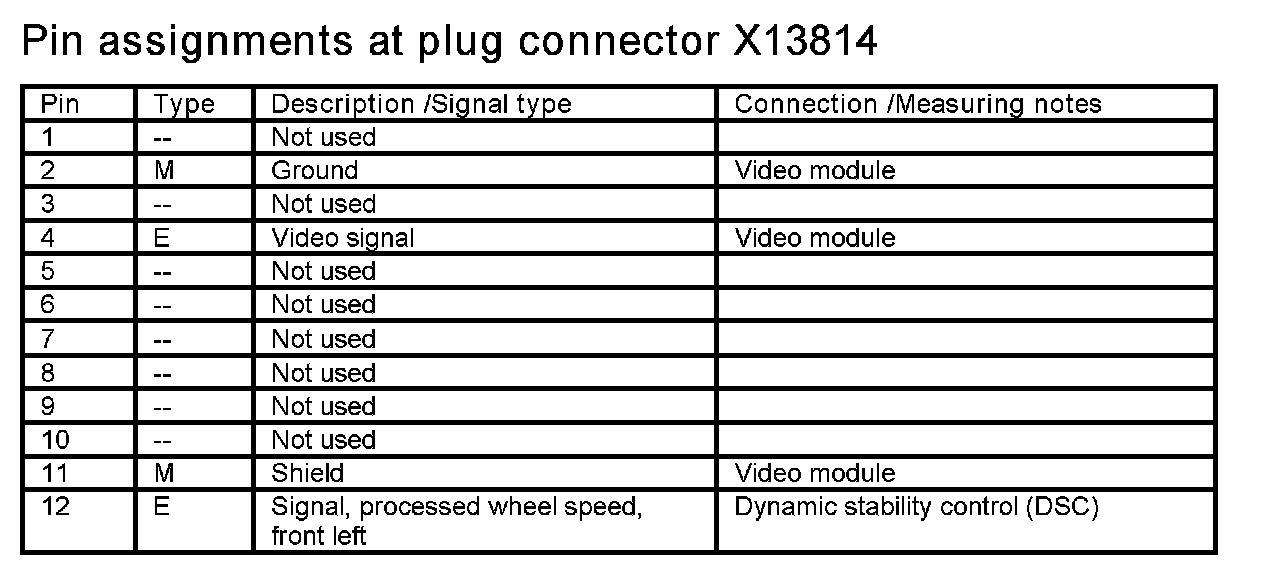

X13814











N38a CCC/M-ASK
