FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
1 Series M Coupe (E82) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

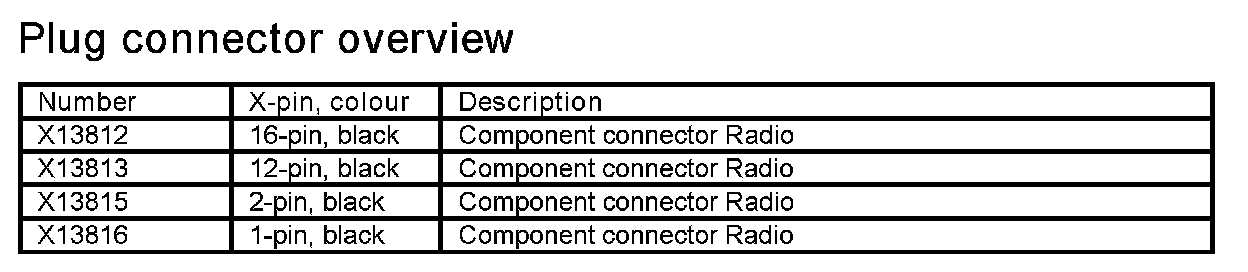

Connectors From X1
>>
X13812
>>
N9 Radio (Stereo System)
N9 Radio (Stereo System)
X13812
N9 Radio
