52 26 311 Removing and Installing/Replacing Lock for Left or Right Rear Seat Backrest (Through-Loading System)

52 26 311 - Removing and installing/replacing lock for left or right rear seat backrest (through-loading system)





Unlock rear seat backrest and fold down.

Note:
In event of faulty unlocking, perform emergency opening Rear Seat - Normal.

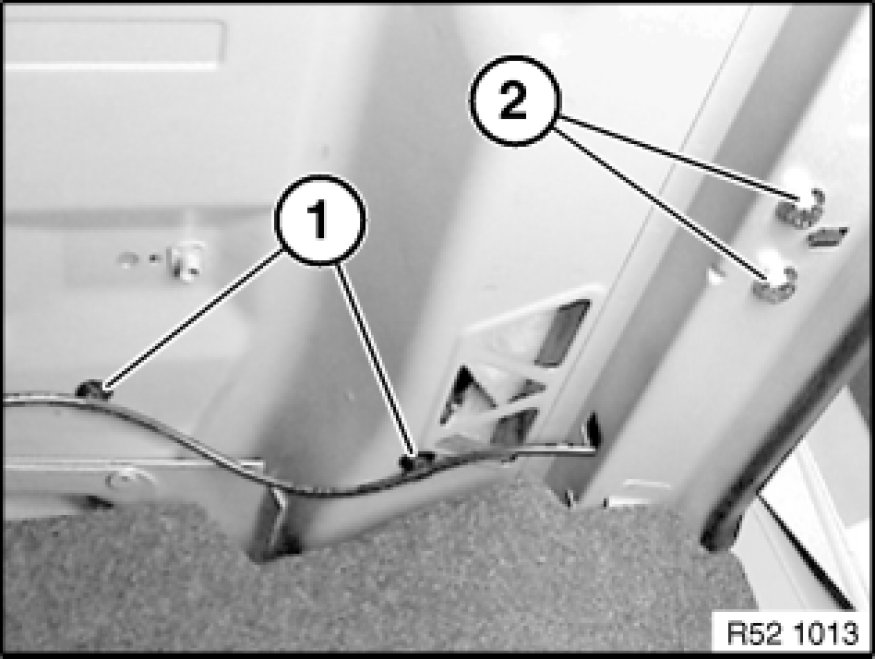

Unclip Bowden cable from holders (1).
Unfasten screws (2).
Tightening torque 52 26 08AZ 52 26 Rear Seats (Through-Loading System).

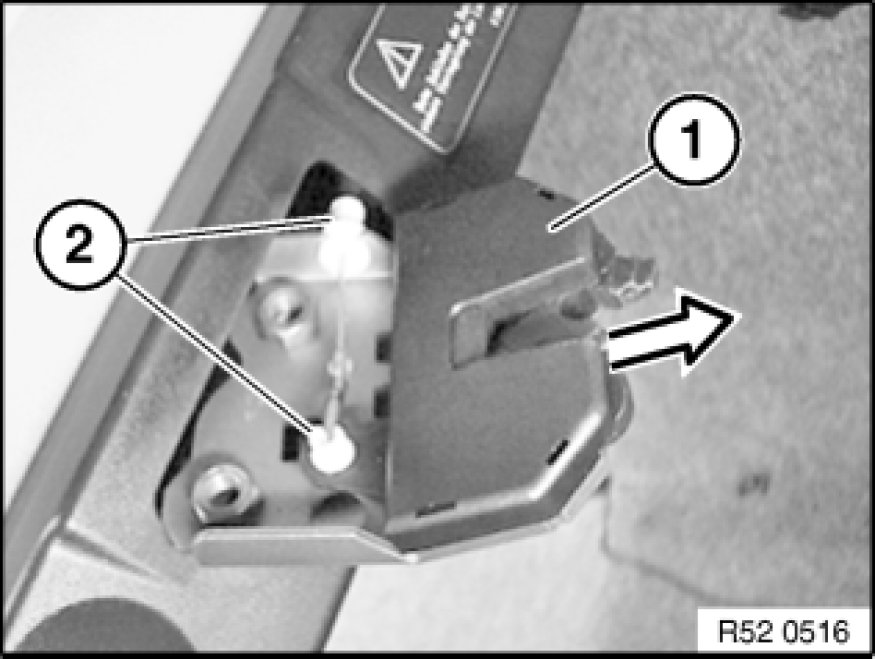

Pull lock (1) out of installation opening slightly and unclip Bowden cable (2).
Remove lock completely from installation opening.

Installation:
Catches (2) on lock must not be damaged.
Bowden cable must be correctly anchored in catches (2).





Installation:
Slide guide lug (1) of lock into opening (2).





Adjusting lock:
- Slacken screws

- Firmly push engaged backrest back

- Tighten down screws
