54 12 117 Replacing Seal For Glass Slide/Tilt Sunroof Lid

54 12 117 - Replacing seal for glass slide/tilt sunroof lid





Necessary preliminary tasks:
- Remove glass slide/tilt sunroof lid Service and Repair

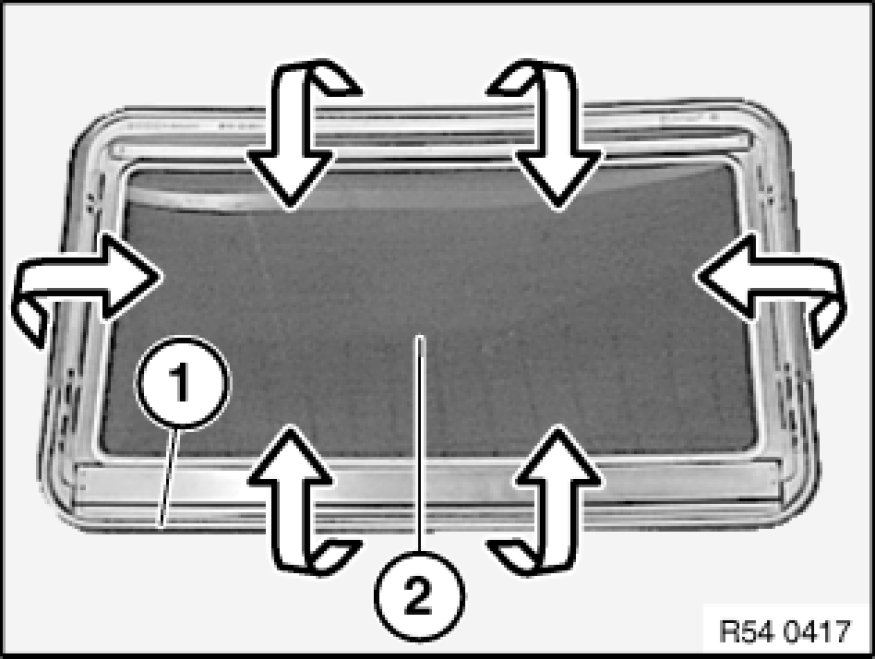

Detach seal (1) from glass slide/tilt sunroof lid (2).





Installation:

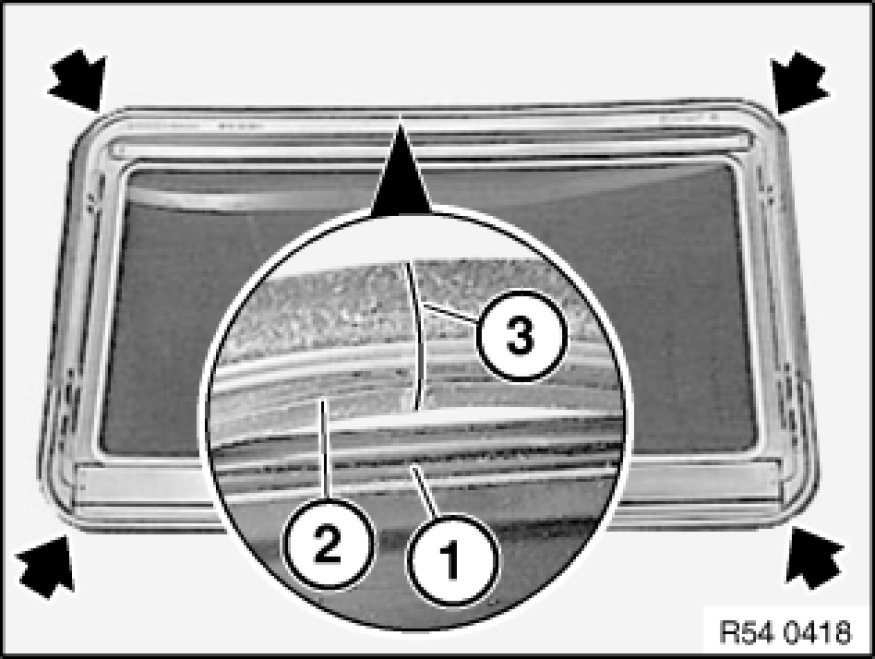

Coat guide channel (1) and seal (2) with soapy water.
Begin installation at rear middle, with sealing joint (3).
Do not pull seal too tightly in radii (leakage).
