Sunroof / Moonroof Motor: Service and Repair

67 61 515 - Replacing drive with gear for actuating slide/tilt sunroof





Necessary preliminary tasks:
- Remove roof switch cluster 61 31 043 Removing and Installing or Replacing Roof Switch Cluster





Note:

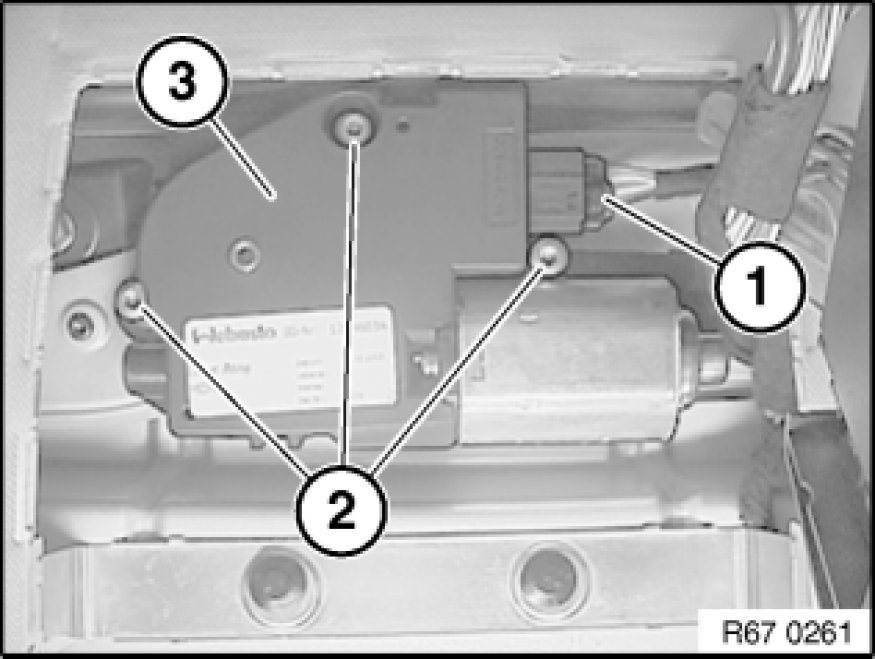

Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect.

Release screws (2), tightening torque 54 13 1AZ 54 13 Electric Sun Roof Components.

Note:
Screws (2) are microencapsulated.

Remove drive with gear for actuating slide/tilt sunroof (3).





Installation:

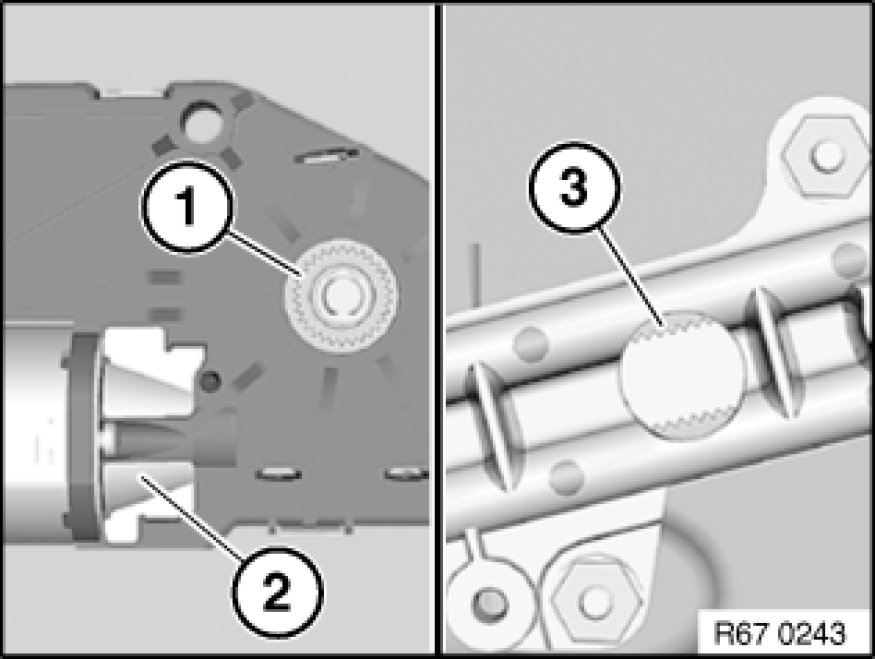

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).





Installation:
- Initialize slide/tilt sunroof Testing and Inspection.
