51 43 075 Removing and Installing / Replacing Side Trim Panel, Footwell, on A-Pillar, Right

51 43 075 Removing and installing / replacing side trim panel, footwell, on A-pillar, right

Special tools required:







Necessary preliminary tasks:
- Remove front entrance cover strip (inside)

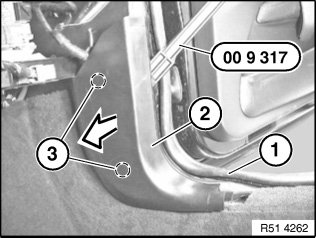

Detach mucket (1) in area of side trim panel (2).
Unclip side trim panel (2) 00 9 317 with special tool in direction of arrow at retaining points (3) and remove.







Installation:
If necessary, lever out clips (1) remaining in bores.
If necessary, replace faulty clips (1).
Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.
