51 46 028 Removing and Installing/Replacing Rear Air Outlet Trim

51 46 028 - Removing and installing/replacing rear air outlet trim





Necessary preliminary tasks:
- Remove panel for rear window shelf 51 46 011 Removing and Installing/Replacing Trim For Oddments Tray (Back Shelf)





Note:
Rear window removed for purposes of clarity.

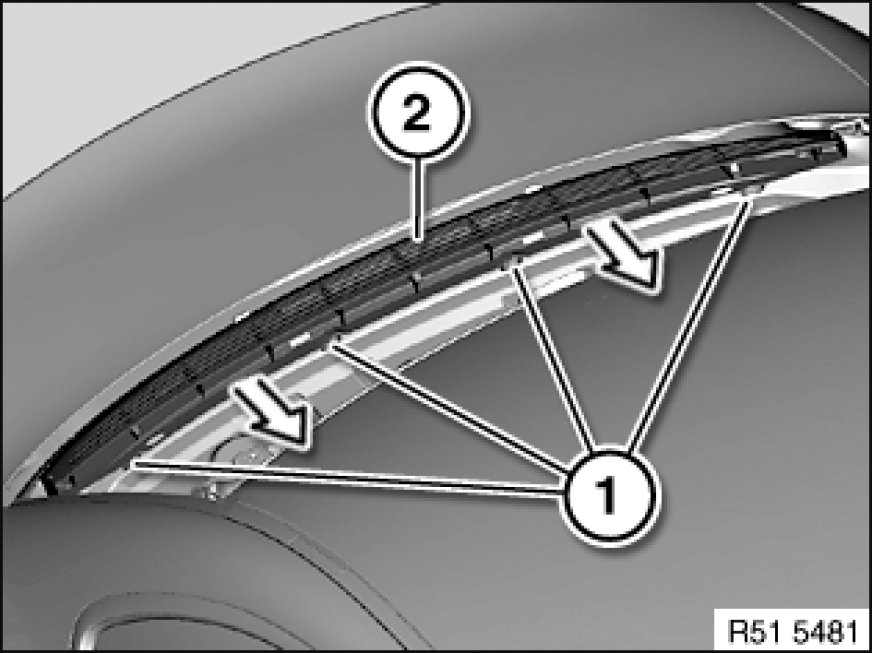

Release screws (1) and feed out air outlet trim (2) towards front.

Installation:
Make sure air outlet trim (2) is correctly seated in associated guides.





Installation:

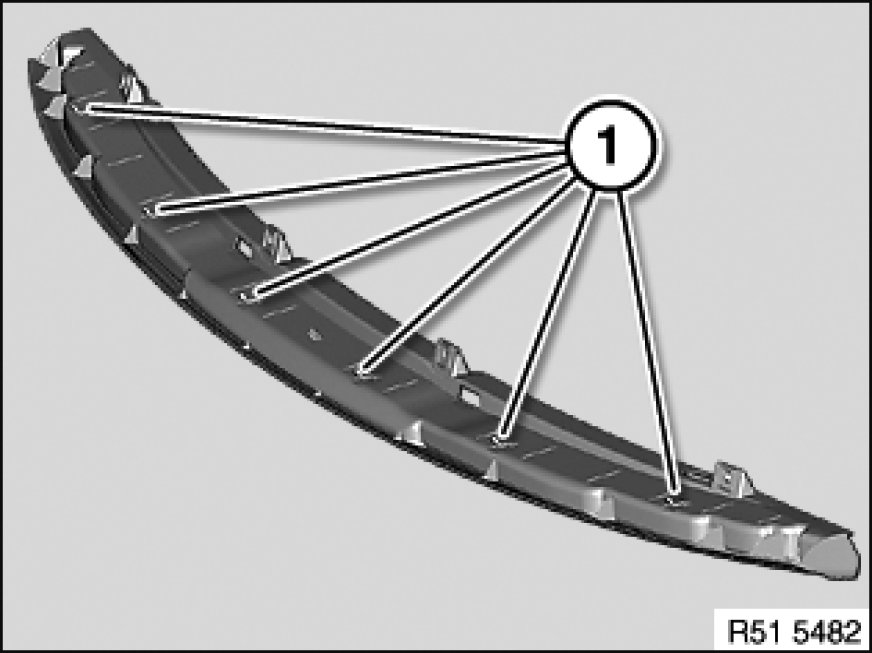

Guides (1) must not be damaged.
