33 33 101 Replacing Two Rubber Mounts (Rear) for Rear Axle Carrier

33 33 101 - Replacing two rubber mounts (rear) for rear axle carrier





Special tools required:





Necessary preliminary tasks:
- Lower rear axle carrier





If necessary, assemble special tools 33 4 140, 33 4 142 and 33 4 147 as illustrated.
If necessary, screw new thrust pieces 33 4 149 with countersunk screws on special tool 33 4 140.





Coat top edge of rubber mount with Circo Light (refer to BMW Parts Service).

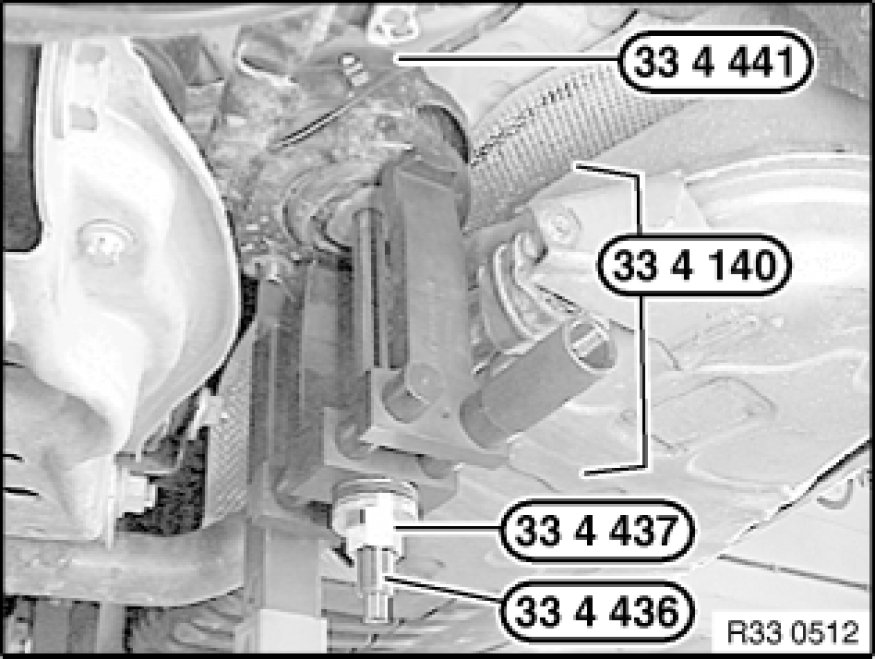

Fit special tool 33 4 441 on rubber mount in such a way that edge of rubber mount disappears in special tool.
Oil special tool 33 4 436 slightly before use.
Align special tool 33 4 140 by way of openings in rubber mount.

Note:
Ensure it is correctly supported on bearing bushing of rear axle carrier.

Withdraw rubber mount from bearing bushing with special tools 33 4 436 33 4 430 Set of Tools, 33 4 437 33 4 430 Set of Tools, 33 4 140 and 33 4 431 33 4 430 Set of Tools.





Installation:
Coat new rubber mount with Circo Light (refer to BMW Parts Service).

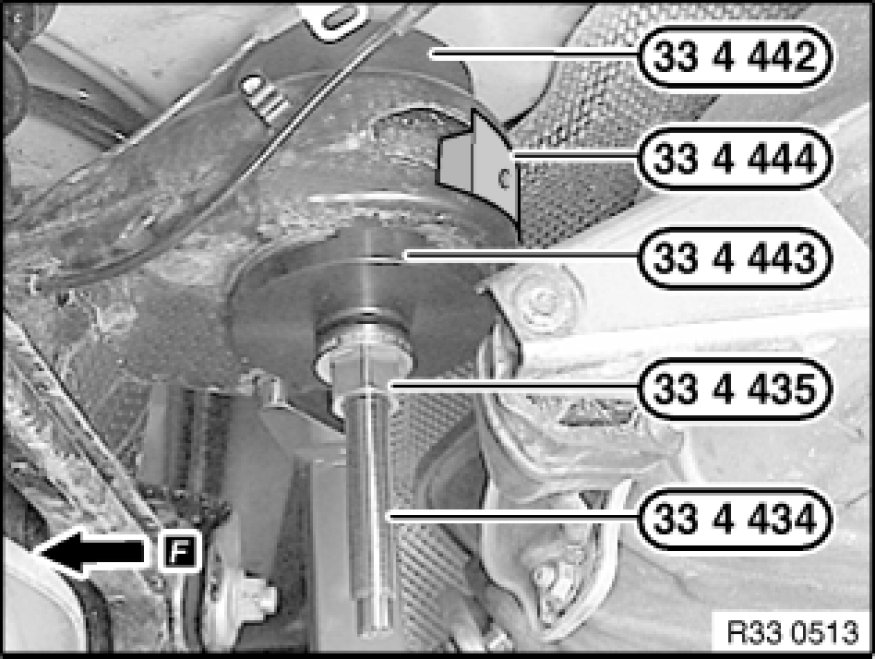

Insert special tool 33 4 444 in opening on rear axle carrier to avoid damaging the rear axle carrier when drawing in the rubber mount.
Oil special tool 33 4 434 slightly before use.
Assemble special tools 33 4 442, 33 4 443, 33 4 435 and 33 4 434 as illustrated.
Align rubber mount by way of arrow to direction of travel.
Draw in rubber mount as far as it will go.





After installation:
- Bleed braking system 34 00 050 Bleeding Brake System With DSC
