33 17 ... Replacing Rubber Mount

33 17 ... Replacing rubber mount

Special tools required:




Withdrawing rubber mount:

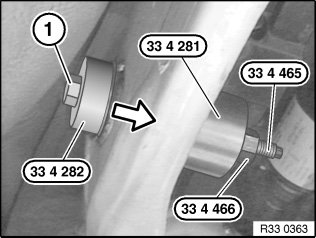

Pull out rubber mount with special tools 33 4 282, 33 4 281, 33 4 466, 33 4 465 and nut (1).

Installing rubber mount:





Important!
Coat bearing bush in rear axle support and new rubber mount with Circo Light (refer to BMW Parts Department).

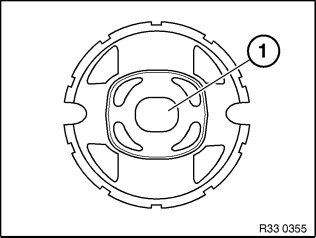

Align rubber mount by way of elongated hole (1) to vehicle transversal direction.





Insert rubber mount (1) in special tool 33 4 283.

Align rubber mount (1) by way of elongated hole to vehicle transversal direction.

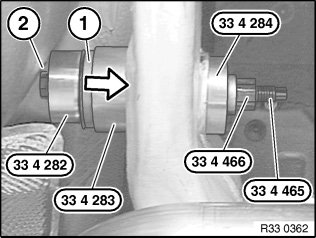

Draw in rubber mount (1) with special tools 33 4 282, 33 4 283, 33 4 284, 33 4 466 33 4 465 2and as far as it will go.
