51 23 160 Removing and Installing/Replacing Arrester Hook on Engine Hood

51 23 160 Removing and installing/replacing arrester hook on engine hood







Raise bonnet/hood lid.

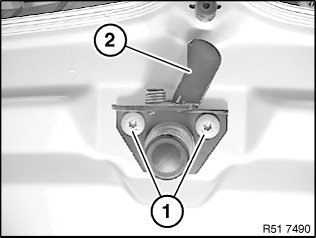

Release screws (1) and remove arrester hook (2).

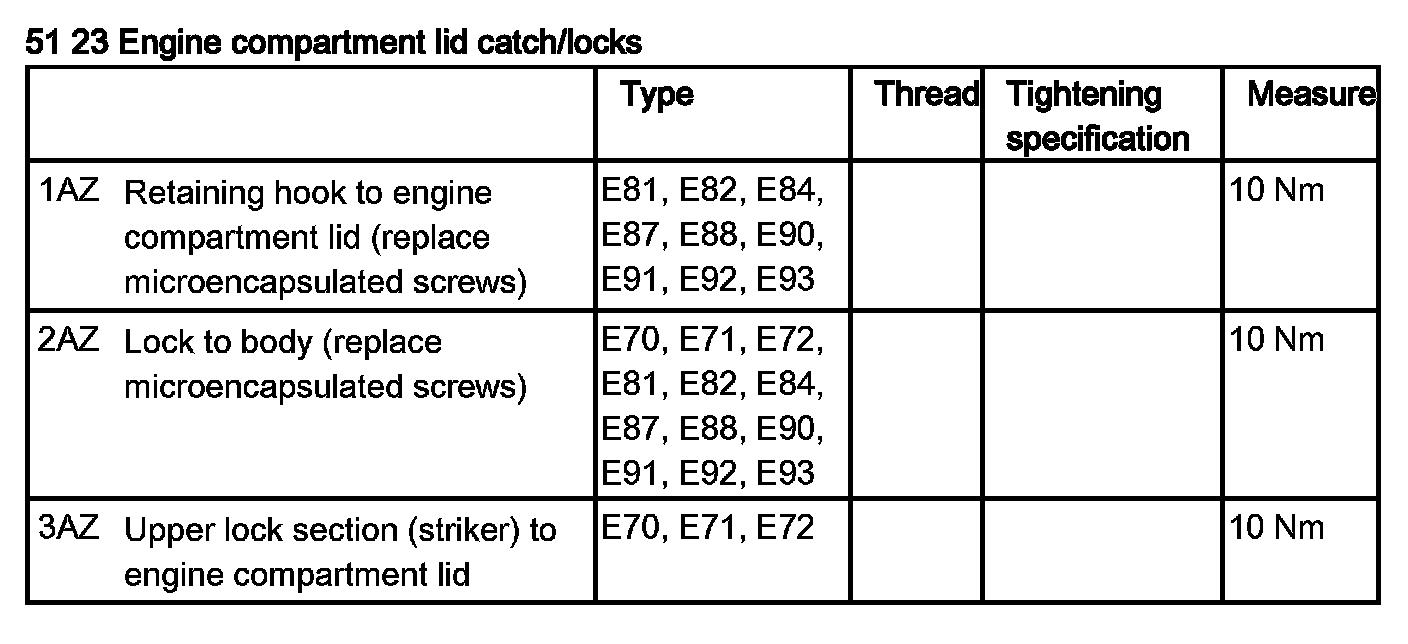

Tightening torque 51 23 1AZ.
