Front Door Limiter: Service and Repair

51 21 280 Removing and installing/replacing door stop on left or right front door







Necessary preliminary tasks:
- Close door windows
- Remove sound insulation in front area







NOTE: Graphics used come from the E87.







NOTE: Secure front door against falling closed.

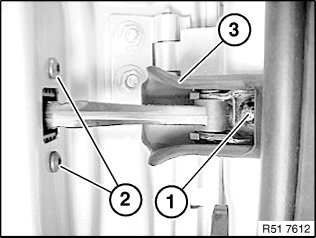

Release screw (1).
Tightening torque 51 21 3AZ.
Unfasten screws (2).
Tightening torque 51 21 4AZ.
Remove seal (3).

Installation:
Seal (3) must not be damaged.

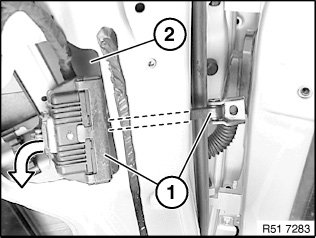

Remove door retainer (1) via cutout (2).







Installation:

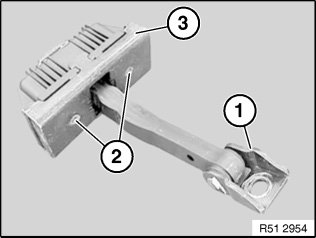

Following parts of door retainer (3) must not be damaged:
1 Hinge
2 Thread
