Voice Activation Microphone: Service and Repair

84 11 555 Removing And Installing/Replacing Hands-free Microphone







Necessary preliminary tasks:
- Remove roof switch cluster

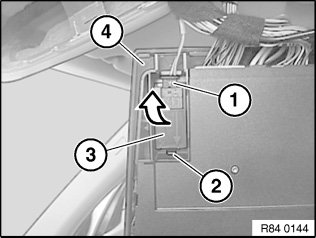

Disconnect plug connection (1).
Unlock catch (2) and feed hands-free microphone (3) in direction of arrow out of roof switch cluster (4).

Installation:
Arrow on hands-free microphone (2) must point in direction of travel.
