51 21 330 Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door

51 21 330 - Removing and installing/replacing window cavity cover strip on inner front door





Important!
Notes on installing window guides Service and Repair are the basis of this repair instruction.





Necessary preliminary tasks:
- Remove front door trim panel

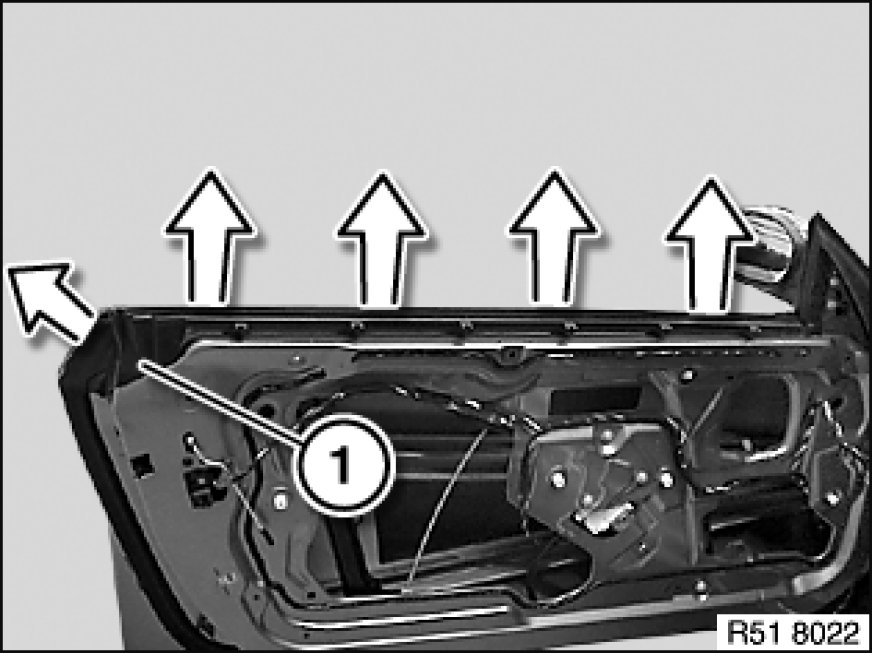

Pull window cavity cover strip (1) in direction of arrow off front door.





Installation Note:

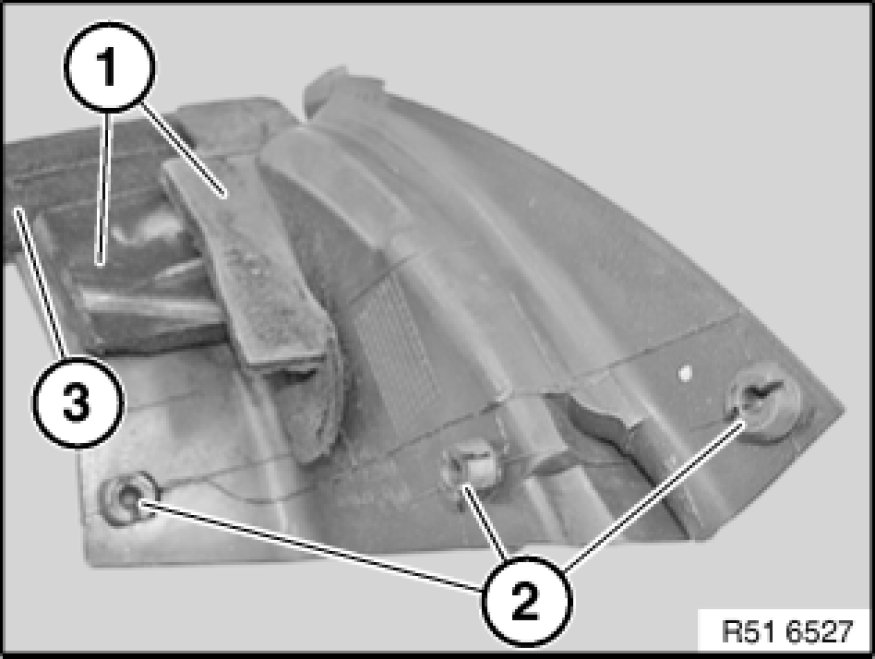

Moulded section (1) and retaining elements (2) of window cavity cover strip (3) must not be damaged.
Moulded section (1) must be correctly fed into door.
Moisten window cavity cover strip (3) prior to fitting with approved anti-friction agent Service and Repair.





Installation Note:

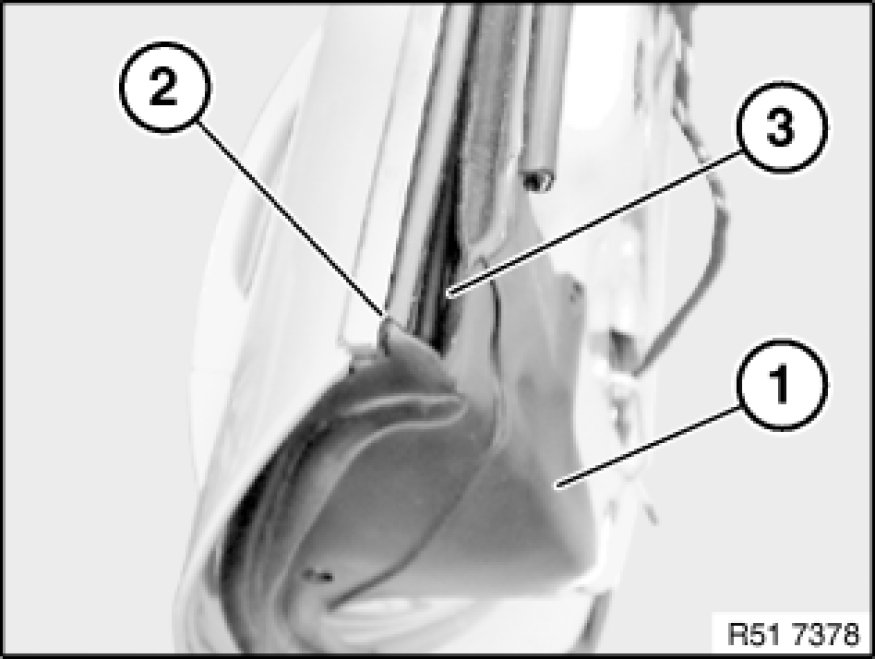

Make sure window cavity cover strip (1) is installed in correct position on door (2) and door window glass (3).
