61 31 023 Removing and Installing/Replacing Start/Stop Switch




61 31 023 - Removing and installing/replacing Start/Stop switch





Necessary preliminary tasks:
- Remove right instrument panel trim 51 45 266 Removing and Installing/Replacing Right Instrument Panel Trim

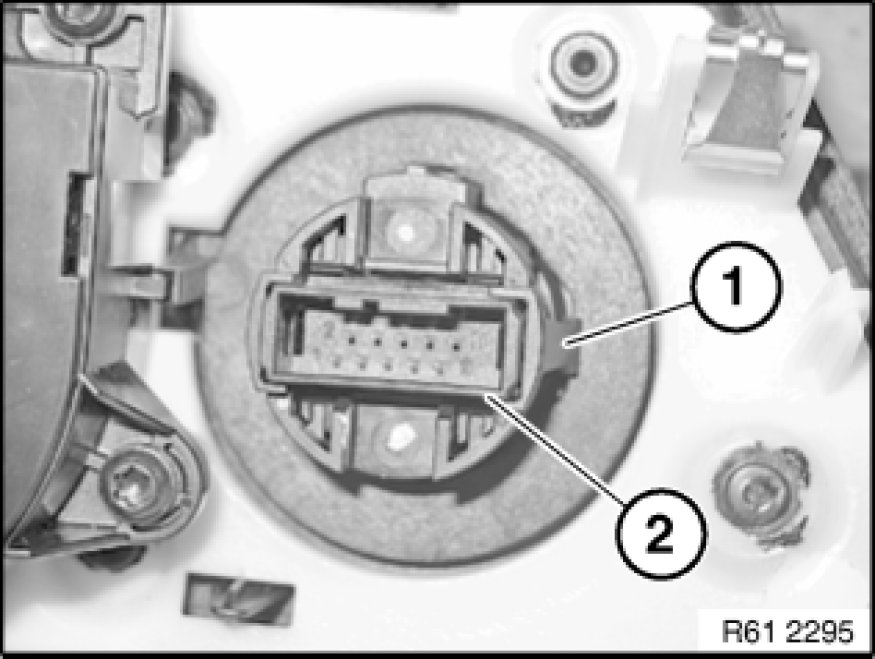

Unlock retainer (1) on both sides.
Remove Start/Stop switch (2).
