16 12 000 Removing and Installing / Replacing Sensor for Fuel Gauge

16 12 000 - Removing and installing/replacing sensor for fuel gauge





Necessary preliminary tasks:
- Remove fuel pump with fuel level sensor 16 14 015 Removing and Installing / Replacing Fuel Pump with Fuel Level Sensor

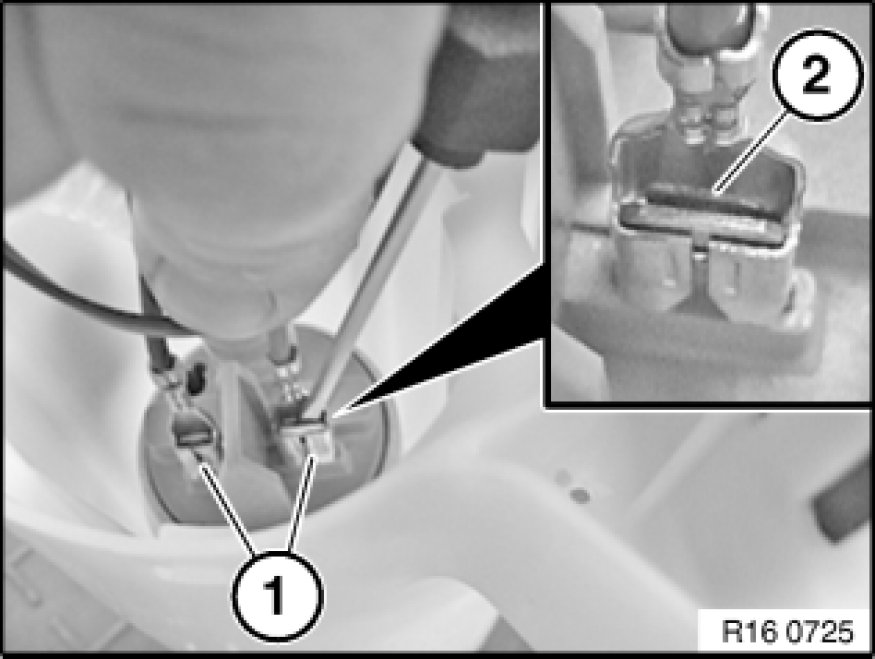

Press plug connection (1) in direction of fuel pump.
Unlock lug (2) with a screwdriver and detach plug connection (1).

Installation:
Check locking of plug connection by pulling.

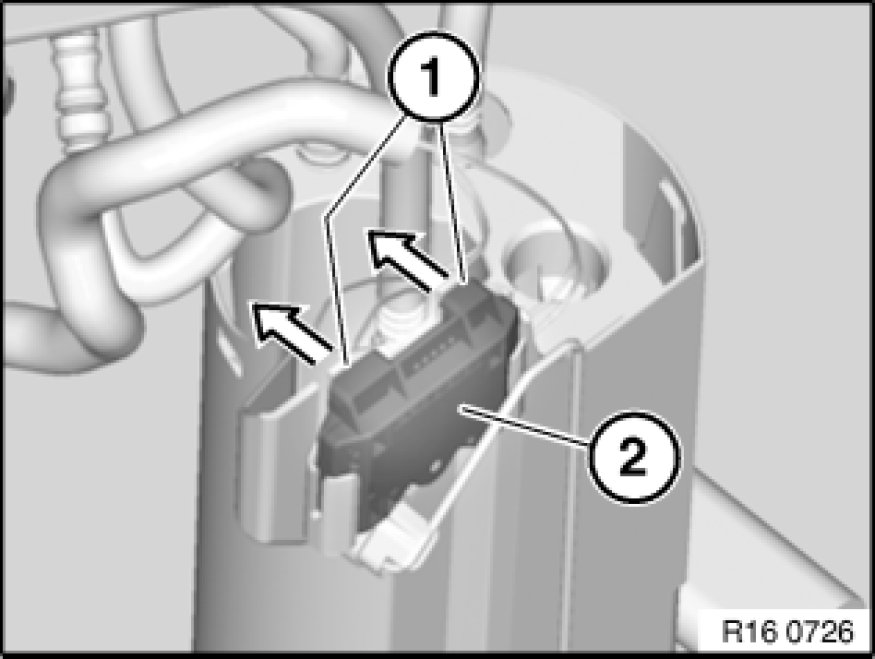

Release lugs (1) in direction of arrow.
Lift out tank fill level sensor (2).
