34 52 550 Removing and Installing/Replacing DSC Sensor

34 52 550 - Removing and installing / replacing DSC sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove right front seat Front Seat, Normal, Manual
- Remove front right entrance cover strip 51 47 000 Removing and Installing/Replacing (Inside) Front Left or Right Door Sill Cover Strip
- Remove side panel 51 43 075 Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Right in right footwell

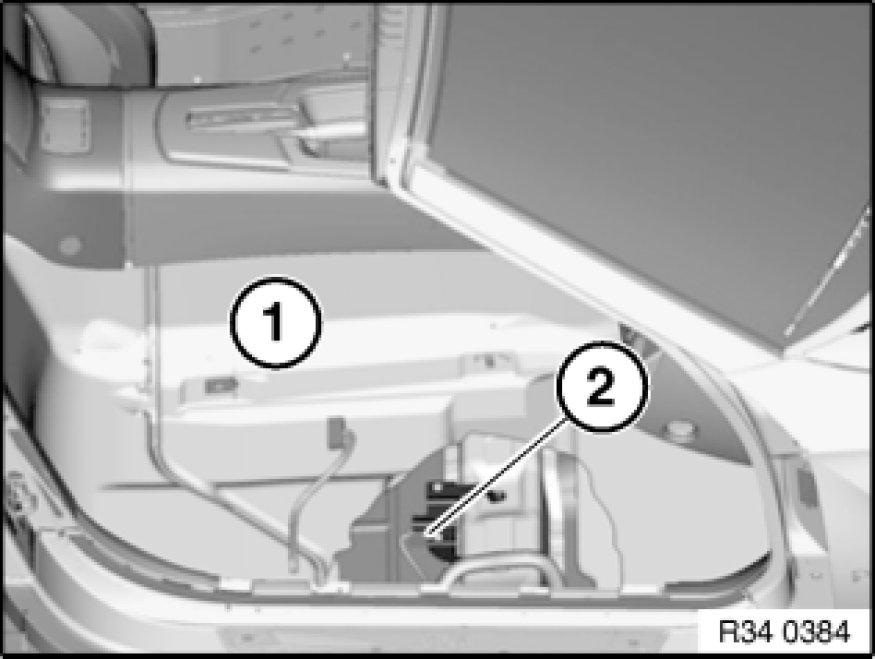

Fold carpet (1) to one side and expose DSC sensor (2).





Important!
Vibration-sensitive component.
Implement screw connection correctly, otherwise there may be malfunctions in the DSC.

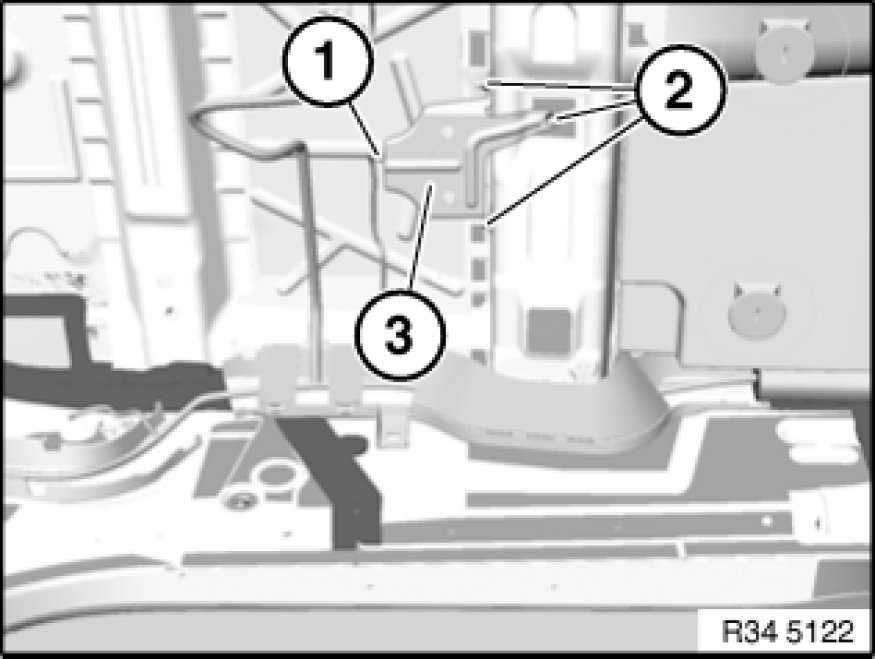

Unlock and disconnect plug (1).

Release screws (2) and remove DSC sensor (3) with holder.

Installation Note:
Tightening torque 34 51 3AZ 34 51 Slip Control System (DSC).

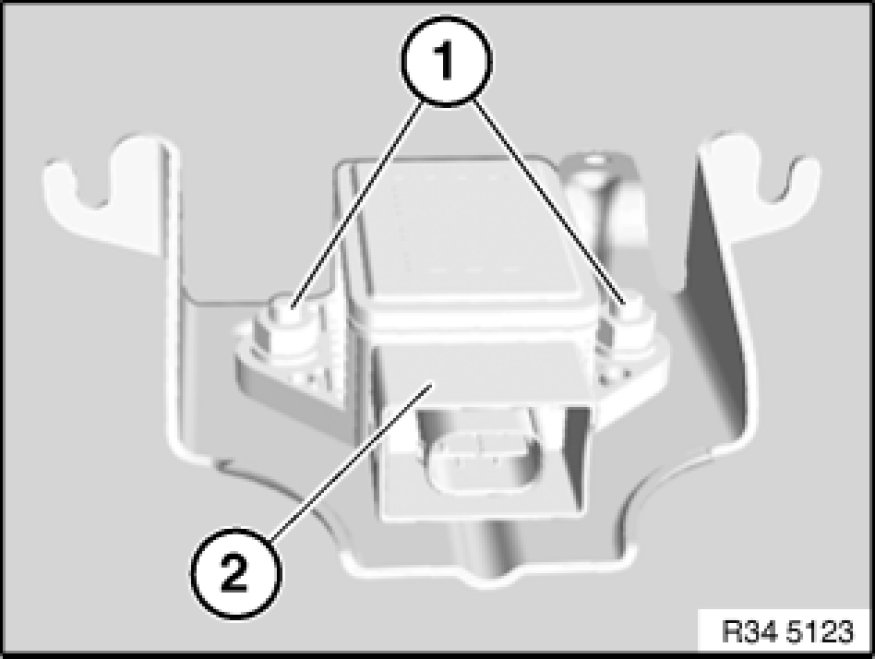

Release nuts (1) and detach DSC sensor (2) from holder.

Installation Note:
Tightening torque 34 51 2AZ 34 51 Slip Control System (DSC).





Carry out calibration/adjustment of DSC sensor.
