51 43 201 Removing and Installing/Replacing Trim Panel For Left or Right Roof Pillar

51 43 201 Removing And Installing/Replacing Trim Panel For Left Or Right Roof Pillar







Necessary preliminary tasks:
- Remove front roofliner trim

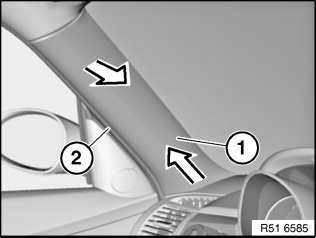

Unclip trim (1) at top and remove from instrument panel.

Installation:
Make sure panel (1) is correctly seated on instrument panel.
Make sure mucket (2) is correctly seated on panel (1).
