Replacing Left Engine Mount

22 11 011 Replacing left engine mount (N63, S63)





Necessary preliminary work:
^ Secure engine in installation position
^ Lower front axle support

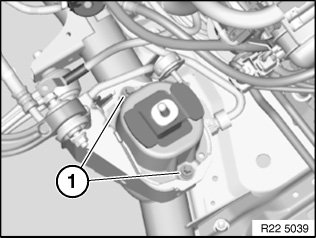

Release screws (1).

Tightening torque 22 11 1AZ.

Remove engine mount (2).





Installation Note:
Holes (1) in engine mount must point to center of vehicle.

&-!:
