26 20 000 Removing and Installing Front Propeller Shaft

26 20 000 Removing and installing front propeller shaft





Warning!
High-voltage system - danger to life!





Important!
Observe safety information for handling hybrid cars





Important!
Do not move vehicle under its own driving power once propeller shaft has been removed.





Important!
^ Replacement only: according to installation with BMW diagnosis and information system under control unit function
Perform functional check of transfer box (calibration)





Necessary preliminary tasks:
^ Remove reinforcement plate
^ Remove exhaust system

Release screws.

Installation:





Replace screws.

Tightening torque 26 11 9AZ.

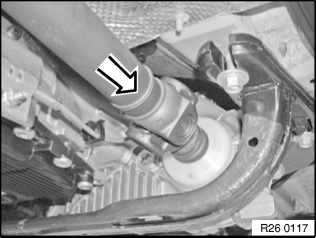

Slide propeller shaft towards rear and remove.





Installation:
Slide propeller shaft fully towards rear.

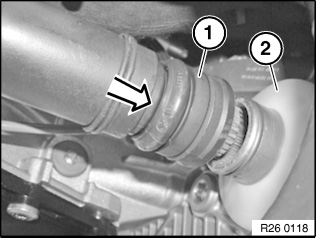

Cup seal (1) must snap audibly into place and rest entirely on dust guard (2).
