72 11 041 Removing and Installing/Replacing Front Left or Right Lower Belt Fitting (Seat Belt Tensioner)

72 11 041 Removing And Installing/Replacing Front Left Or Right Lower Belt Fitting (seat Belt Tensioner)







Necessary preliminary tasks:
- Remove front seat

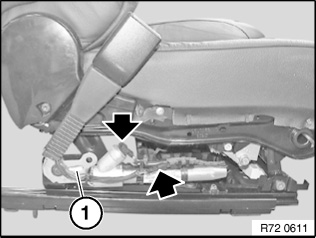

Unlock plug connections and disconnect.

Installation:
Belt tensioner (1) is coded against incorrect installation.

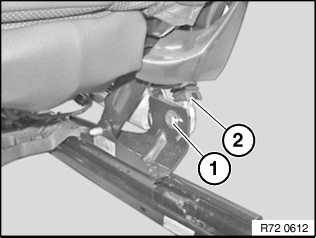

Release screw (1).

Installation:
Replace screw (1).

Tightening torque 72 11 03AZ.
Remove belt tensioner (2).

fig-refbme72azd7211-01
fig-refbme72azd7211-02
