13 54 020 Removing and Installing/Sealing Right Throttle Body

13 54 020 Removing And Installing/Sealing Right Fuel Charging Station (N63 Hybrid)







WARNING: High-voltage system - danger to life.







WARNING:
The following points must be strictly observed prior to starting work:
- De-energize the high-voltage system
- Observe safety instructions for handling with hybrid vehicles







Necessary preliminary tasks:
- Turn off ignition
- Remove right intercooler







NOTE: Picture shows the left throttle valve assembly, the procedure for the right side is identical.

Unlock plug (1) and remove.
Unfasten screws (2).
Tightening torque 13 54 1AZ.
Remove throttle valve assembly (3).

Installation:
Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.







Installation:

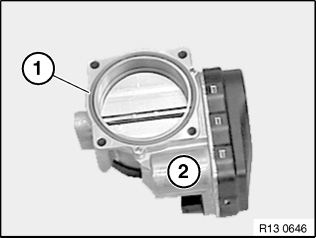

Replace sealing ring (1) of throttle assembly (2).







Installation:
Check stored fault message.
Delete fault memory.
