13 54 015 Removing and Installing/Sealing Left Throttle Valve Assembly
13 54 015 Removing And Installing/Sealing Left Throttle Body (N63 Hybrid)
WARNING: High-voltage system - danger to life.
WARNING;
The following points must be strictly observed prior to starting work:
- De-energize the high-voltage system
- Observe safety instructions for handling with hybrid vehicles
Necessary preliminary tasks:
- Turn off ignition
- Remove left intercooler

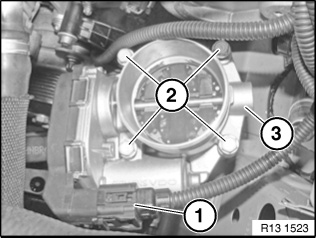

Unlock plug (1) and remove.
Unfasten screws (2).
Tightening torque 13 54 1AZ.
Remove throttle valve assembly (3).
Installation:
Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.
Installation:

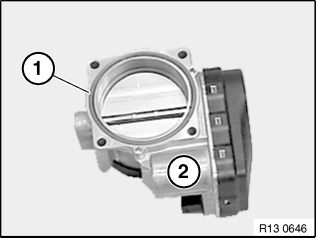

Replace sealing ring (1) of throttle assembly (2).
Installation:
Check stored fault message.
Delete fault memory.
