11 61 065 Removing and Installing/Replacing Left Intake Plenum

11 61 065 Removing and installing/replacing left intake manifold (N63 hybrid)

Special tools required:





Warning!
High-voltage system - danger to life!

Warning!
The following points must be strictly observed prior to starting work:

^ Disconnect high-voltage system from power
^ Observe safety instructions for working with hybrid vehicles.





Necessary preliminary tasks:
^ Remove complete front panel.
^ Remove complete cooling core with condenser.
^ Remove left injection pipe.





Detach engine ventilation hose (1).

Unscrew nuts (2).

Tightening torque: 11 61 1 AZ.

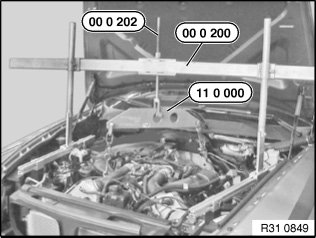

Fit special tool 00 0 200.

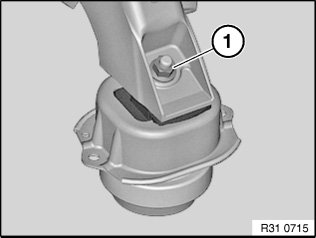

Release nuts on left and right engine support arms.

Raise engine.





Release throttle valve (1).

Release screw (2).

Tightening torque: 11 61 2 AZ.

Installation:
Replace all profile seals.





Assemble engine and vehicle.

Check intake system for leaks.
