Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N63)





Necessary preliminary tasks:
^ Secure engine in installation position
^ Remove underbody protection
^ Remove reinforcement plate
^ Release tie rod

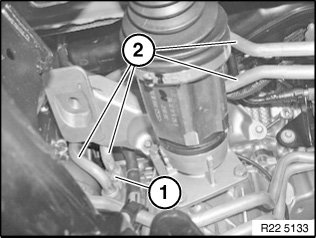

Release screw (1).

Tightening torque 17 22 4AZ.

Lay engine cooling lines (2) to one side.

Important!
After completion of work, check oil level.

Recycling:
Catch and dispose of leaking engine oil in a suitable container.





Observe country-specific waste-disposal regulations.

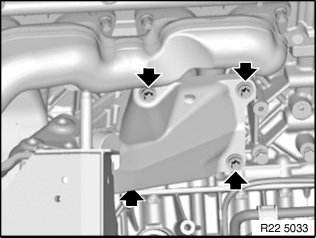

Release screws and engine support arm.

Tightening torque 22 11 3AZ.

��#:
