Removing and Installing/Sealing Right Cylinder Head Cover

11 12 006 Removing and installing/sealing right cylinder head cover (N63 hybrid)

Special tools required:





Warning!
High-voltage system - danger to life!





Necessary preliminary tasks:
^ Clamp off battery negative terminal

^ Remove right intercooler
^ Remove intake silencer housing
^ Disconnect fuel feed line
^ Detach wiring loom for injectors and lay to one side
^ Remove ignition coils, cylinders 1-4
^ Remove injectors, cylinders 1-4
^ Remove high-pressure pump

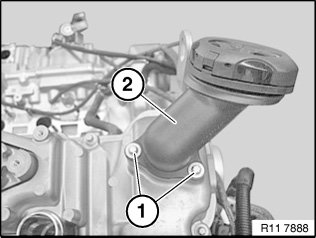

Release screws (1).

Tightening torque 11 12 9AZ.

Remove oil filler neck (2).

Installation:
Replace sealing ring.

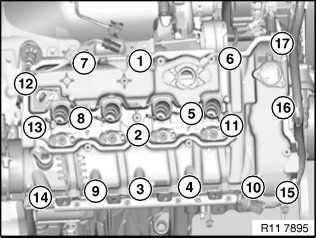

Release bolts in sequence (17 to 1).

Remove cylinder head cover.

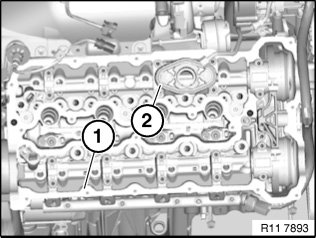

Clean sealing surface (1) with special tool 11 4 470.

Installation:

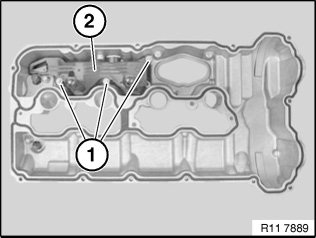

Replace seal (2).





Installation:
Renew profile seal of cylinder head cover.

Installation:





It is important to join screw (1) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screw (1).

Release screw (1) by 90°.





Secure cylinder head cover in sequence (1 to 17) in two work steps.

Tightening torque 11 12 3AZ.





Assemble engine.
