17 11 040 Removing and Installing/Replacing Thermostat Cartridge

17 11 040 Removing and installing/replacing thermostat cartridge (N63)





Warning!
High-voltage system - danger to life!





Warning!
The following points must be strictly observed prior to starting work:
^ De-energise the high-voltage system
^ Observe safety instructions for handling with hybrid vehicles





Important!
Danger of scalding!

Only perform this work after engine has cooled down.





Necessary preliminary tasks:
^ Follow instructions for working on cooling system
^ Drain coolant
^ Remove fan cowl

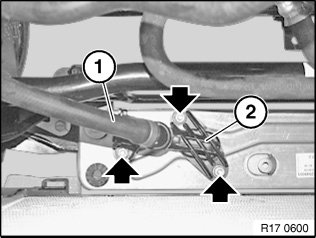

Unlock and detach coolant hose (1).

Unscrew nuts.

Tightening torque 17 22 8AZ.

Remove thermostat cartridge (2).

Installation:
^ Clean contact faces.

Reassemble the vehicle.
