Removing and Installing Radiator

17 11 000 Removing and installing radiator (N63 hybrid)





Warning!
High-voltage system - danger to life!





Warning!
The following points must be strictly observed prior to starting work:
^ De-energise the high-voltage system
^ Observe safety instructions for handling with hybrid vehicles





Warning!
Danger of scalding!
Only perform this work after engine has cooled down.





Important!
Wear safety goggles and protective gloves.





Necessary preliminary tasks:
^ Remove underbody protection
^ Follow instructions for working on cooling system
^ Remove fan cowl
^ Drain coolant
^ Unlock coolant hoses and detach.
^ Release radiator air duct, do not remove air duct.

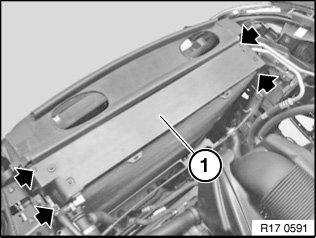

Release screws.

Remove cover (1).

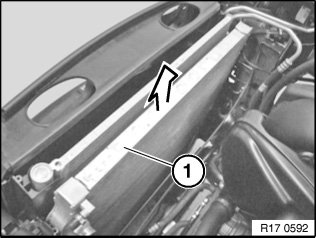

Remove radiator (1) towards top.
