17 11 120 Removing and Installing/Replacing Radiator For Charge Air Cooler

17 11 120 Removing and installing/replacing cooling radiator for intercooler (N63 hybrid)





Warning!
High-voltage system - danger to life!





Warning!
The following points must be strictly observed prior to starting work:
^ De-energise the high-voltage system
^ Observe safety instructions for handling with hybrid vehicles





Warning!

Danger of scalding!
Only perform this work after engine has cooled down.





Necessary preliminary tasks:
^ Remove front underbody protection
^ Remove fan cowl
^ Release radiator air duct. Do not remove air duct. Pull air duct forwards only.
^ Drain coolant for intercooler

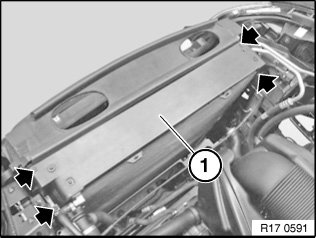

Release screws.





Remove cover (1)

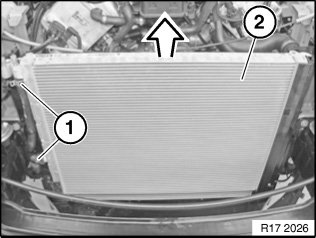

Release and disconnect coolant hoses (1).

Lift out cooling radiator for intercooler (2).





Assemble engine.

After completing work, fill intercooler with coolant.

Vent cooling system for intercooler.

Check cooling system for leaks.

Assemble engine.
