51 47 157 Removing and Installing/Renewing Cover For Left or Right Capping In Luggage Compartment

51 47 157 Removing And Installing/Renewing Cover For Left Or Right Capping In Luggage Compartment







Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim.
- Remove D-pillar trim panel.

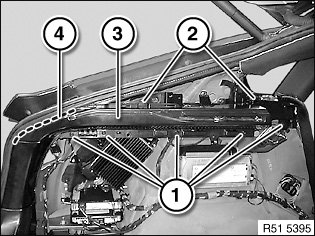

Release screws (1) and (2).
Remove capping cover (3).

Installation:
Mucket must overlap capping cover (3) along dashed line (4).
