Forward Looking Camera: Service and Repair

66 50 040 Removing And Installing/Replacing Exterior Mirror Camera







Necessary preliminary work:
- Remove protective cap from exterior mirror

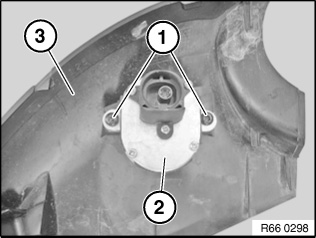

Release screw (1).
Detach exterior mirror camera (2) from protective cap (3).







Calibration:
1. Mount KDS quick-release clamp on the wheels of the side being calibrated: e.g. front left and rear left.
(Mounting the KDS quick-release clamp detects wheel centre.)
2. Calibration is performed via BMW diagnosis system:
- Service function
- Body
- All-round vision camera
- Calibration of all-round vision camera
