26 20 000 Removing and Installing Front Propeller Shaft

26 20 000 Removing and installing front propeller shaft





Important!
Do not move vehicle under its own driving power once propeller shaft has been removed.





Important!
^ Replacement only: according to installation with BMW diagnosis and information system under control unit function
Perform function check of transfer box (calibration)





Necessary preliminary work:
^ Remove underbody protection

^ Remove reinforcement plate
^ Remove exhaust system (E70/71 N57,N63)

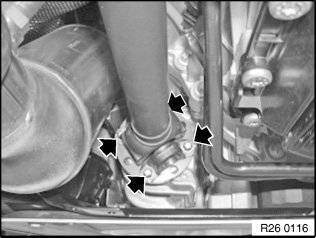

Release screws.

Installation Note:
Replace screws.

Tightening torque 26 11 9AZ.

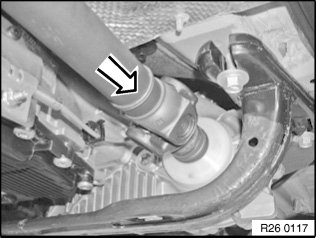

Slide propeller shaft towards rear and remove.





Installation Note:
Slide propeller shaft fully towards rear.

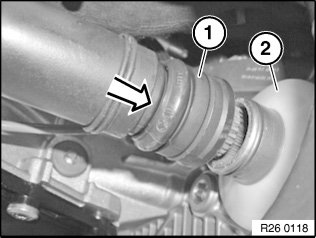

Sealing cup (1) must snap audibly into place and rest entirely on dust guard (2).
