Shifter ASMT: Service and Repair

61 31 342 Removing And Installing/Renewing Gear Selector Switch







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary tasks:
- Clamp off battery negative lead
- E72 Only:Disconnect Both negative battery cables
- Remove centre console trim

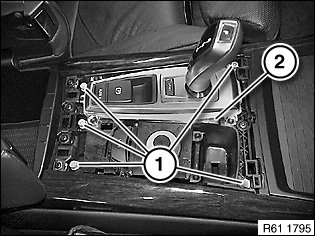

Release screws (1). Tightening torque 51 16 2AZ.
Raise gear selector switch carrier (2) and disconnect all plug connections.
Remove gear selector switch carrier (2).







Remove trim for gear selector switch.

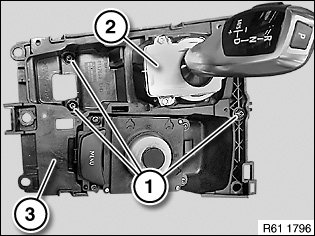

Release screws (1). Tightening torque 61 31 4AZ.
Remove gear selector switch (2) from gear selector switch carrier (3).







Replacement:
Carry out vehicle programming/encoding.
