66 20 536 Removing and Installing/Replacing Rear Middle Left Ultrasonic Transducer

66 20 536 Removing And Installing/Replacing Rear Middle Left Ultrasonic Transducer







Necessary preliminary tasks:
- Remove rear bumper

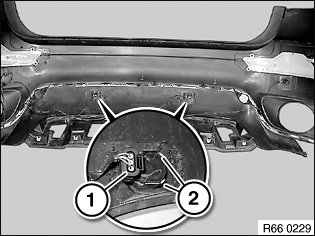

Disconnect plug connection (1) and unclip ultrasonic sensor from retaining tabs (2).

Installation:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation:

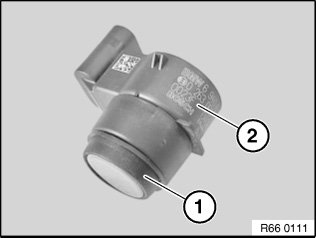

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).
