66 20 518 Removing and Installing/Replacing A Front Ultrasonic Sensor (Centre)

66 20 518 Removing And Installing/replacing A Front Ultrasonic Sensor (Centre)







Necessary preliminary tasks:
- Remove front bumper trim

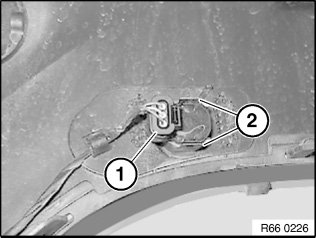

Disconnect plug connection (1) and unclip ultrasonic sensor from retaining tabs (2).

Installation:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation:

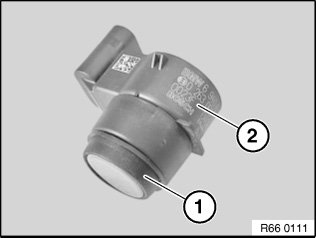

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
