36 11 121 Removing and Installing/Replacing an RDC Trigger Transmitter (Front)

36 11 121 Removing and installing/replacing an RDC trigger transmitter (front)





Necessary preliminary tasks:
^ Partially detach front wheel arch trim

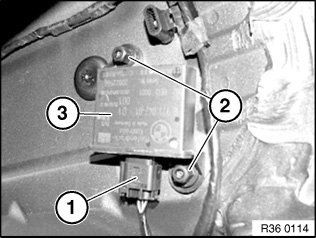

Disconnect plug connection (1).

Release plastic nuts (2) and remove trigger transmitter (3).

Installation:
If necessary, replace plastic nuts.
