X6 (E71) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors From X1
>>
X14055
X14055

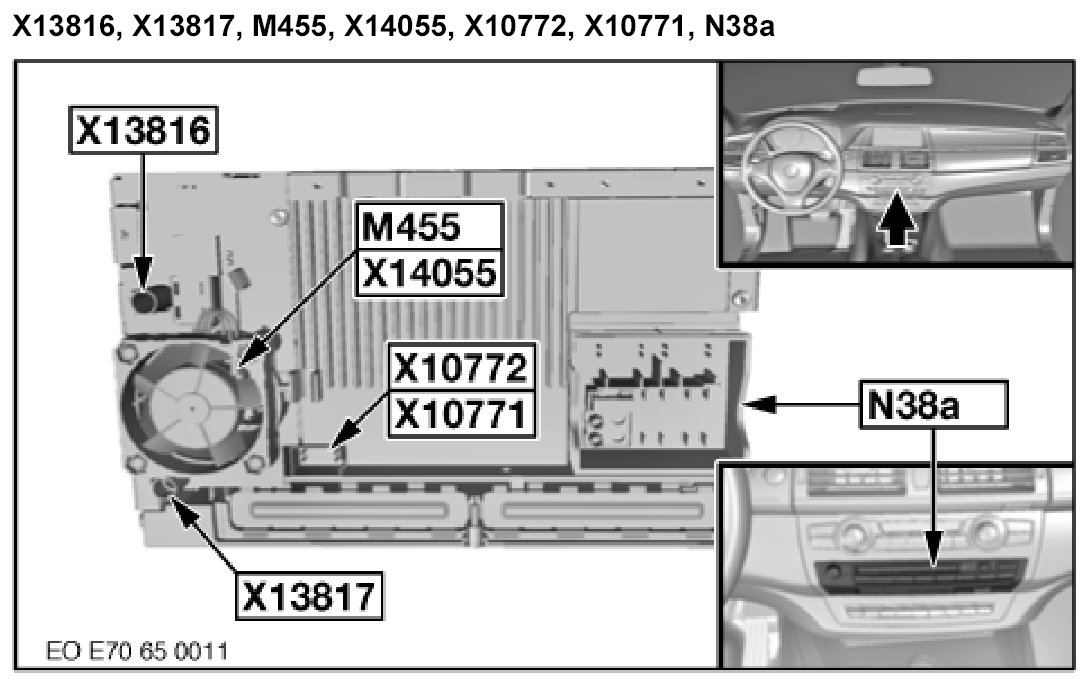

X13816, X13817, M455, X14055, X10772, X10771, N38a
