Left or Right Tail Light (on Tailgate)



63 21 104 Replacing Sealing Frame For Left Or Right Rear Light (On Rear Lid)







Necessary preliminary tasks:
- Remove rear light

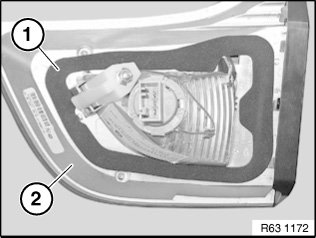

Detach sealing frame for rear light (1) completely from rear light (2).
Clean bonding surface and allow to dry.

Installation:
Make sure sealing frame for rear light (1) is correctly positioned and bonded all round on rear light (2).
