64 11 263 Removing and Installing/Replacing Rear Compartment Blower

64 11 263 Removing And Installing Complete Rear Cabin Fan







Necessary preliminary tasks:
- Remove complete centre console

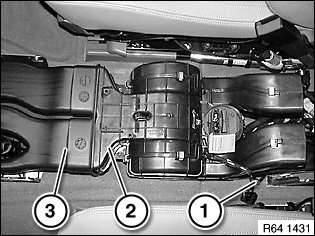

If necessary, release screw (1) on both sides and disconnect plug connection on rear cabin fan controller.
Remove rear cabin fan housing (2) from air duct in centre console (3).

Replacement:
Remove rear compartment blower controller.
