52 26 ... Removing and Installing/Replacing Ski Bag on Rear Seat

52 26 ... Removing And Installing/Replacing Ski Bag On Rear Seat

Special tools required:







Necessary preliminary tasks:
- Remove armrest

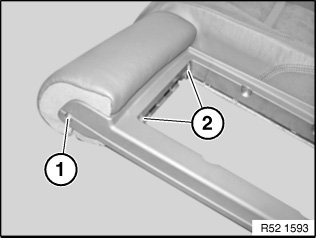

Release screw (1).
Unfasten screws (2).
Tightening torque: 52 26 09AZ.

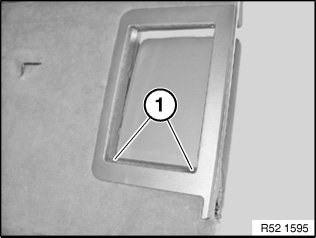

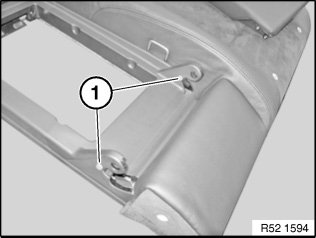

Release screws (1).
Tightening torque 52 26 09AZ.







Lever out pins.

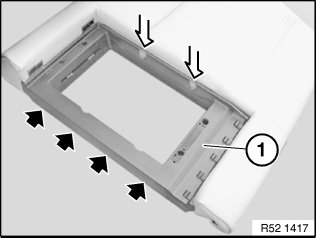

Lever out rear ski bag frame (1) if necessary with special tool 00 9 317.

IMPORTANT:
Risk of damage.
Plastic eyelets of front trim ski bag trim can break.
If necessary, replace faulty ski bag trim.

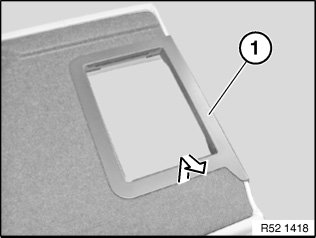

Unclip front ski bag trim (1) towards top.

Installation:
Plastic eyelets of front ski bag trim must not be damaged.
If necessary, replace faulty ski bag trim.
