51 16 ... Removing and Installing Insert For Right Glovebox
51 16 ... Removing and Installing Insert For Right Glovebox
51 16 ... Removing And Installing Insert For Right Glovebox
Release trim (1) at clips (2) towards inside.

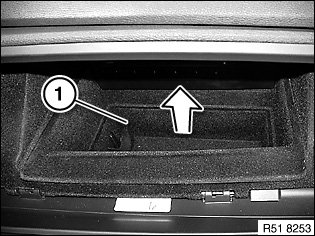

Remove insert (1) towards top.

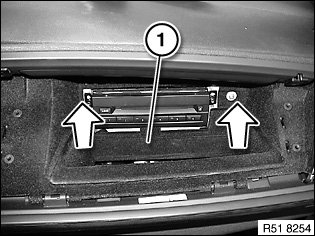

Reach into housing (1) and pull out towards top.
